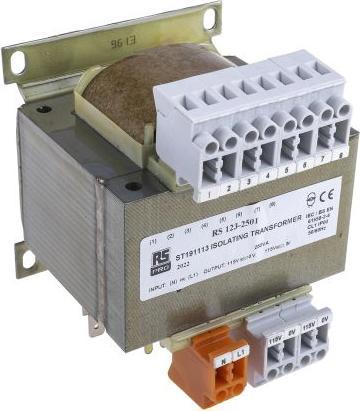

RS PRO Universal Transformer 250VA 2x115V

Secondary nominal voltage: 2x115V AC
Rated power: 250VA
Mounting type: DIN rail mounting, screw mounting
Length: 96mm
Width: 102mm
Depth: 110mm
Dimensions: 96 x 102 x 110mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Weight: 3.5kg

RS Pro transformers with universal input. This series of input transformers from our trusted brand RS Pro are high-quality and suitable for use in general applications. They are single-phase transformers with screw terminals for universal input voltages, with brackets for screw fastening or mounting on DIN rails. DIN rail mounting is only intended for transformers up to 250 VA. These input transformers have passed a 100% dielectric test and electrical testing, and feature a low-loss and low-noise core. These transformers have a built-in earth connection terminal and a primary winding with multiple taps. High efficiency, low voltage regulation, varnish impregnated, temperature class B. The technical specifications of the product are provided on the label.
