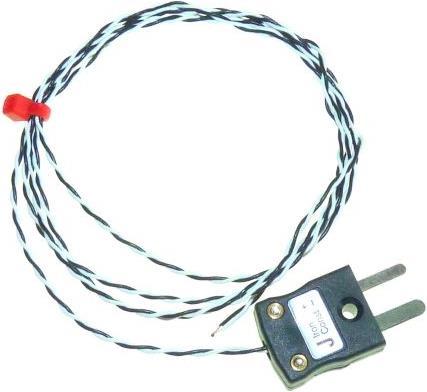

RS PRO Type J Exp. Junction Thermocouple PFA 1m

Thermocouple type: J
Probe diameter: 0.3 mm
Maximum temperature detected: +250°C
Connection type: Miniature plug
Cable length: 1 m
Standards met: RoHS compliant

Type J thermocouples feature an unprotected contact point for fast response with a welded exposed connection. They come with Teflon PFA insulated, twisted pair cable, adhering to Class 1 cable specification to BS EN 60584-3:2008 and tolerance to IEC 584 Class 1. The termination includes a miniature connector. The temperature range is from -75°C to +250°C, making them ideal for test and development applications.
