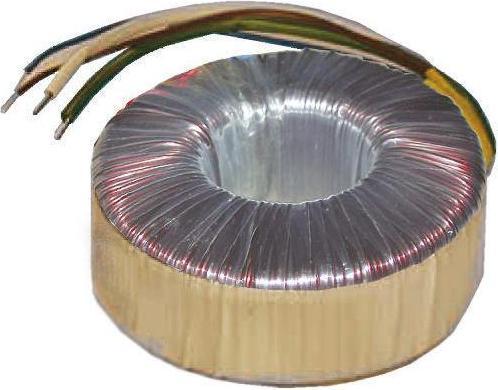

RS PRO Transformer Toroidal 225VA 2x30V

Nominal voltage primary side: 230V AC
Nominal voltage secondary side: 2 x 30V AC
Nominal power: 225VA
Number of outputs: 2
Secondary current: 3.75A
Height: 50mm
Weight: 2.3kg
Diameter: 120mm
Dimensions: 120 (slider) x 50mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Connection type: Copper conductor

Under no circumstances should both ends of the mounting screw touch the metal housing or metal frame simultaneously, as this could lead to a dangerous short circuit. Mounted parts are not included and are available separately. Toroidal core, open design, 230V primary winding. High-quality toroidal transformers in an open design with a simple 230V AC, 50/60Hz primary winding. The two independent secondary windings can be connected individually, in series, or in parallel as needed. Small dimensions and low weight compared to traditional laminated designs. Very low magnetic emission. Very low induced noise level (hum). Very low iron losses. Double insulated primary connections.
