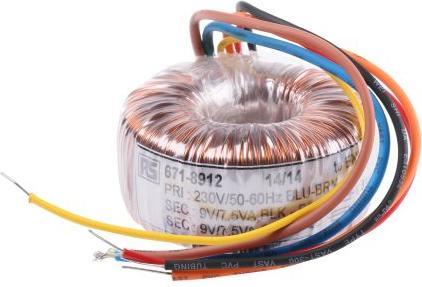

RS PRO Transformer Toroidal 15VA 2x9V

Rated primary voltage: 230V AC
Rated secondary voltage: 2 x 9V AC
Nominal power: 15VA
Number of outputs: 2
Secondary current: 833mA
Height: 31mm
Weight: 365g
Diameter: 60mm
Dimensions: 60 (slide) x 31mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Connection type: Connection wire with copper conductor
Mounting hole diameter: 6mm

Under no circumstances should both ends of the fixing screw touch the metal housing or metal frame at the same time, as this would lead to a dangerous short circuit. Mounting parts not included in scope of delivery, available separately. Toroidal core, open design, 230V primary winding. High-quality toroidal transformers in open design with simple 230V AC, 50/60Hz primary winding. The two independent secondary windings can be connected individually, in series or in parallel as required. Small dimensions and low weight compared to traditional laminated stacked designs. Very low magnetic emission. Very low induced noise (hum). Very low iron loss. Double insulated primary terminals.
