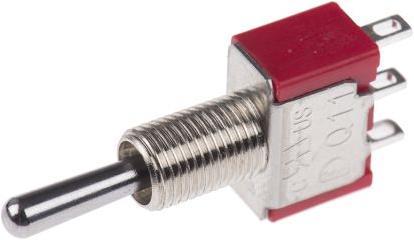

RS PRO Toggle switch,SP,on-off-on,solder lug
Delivered between Wed, 20.5. and Tue, 26.5.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 50.–
Product details
Contact arrangement: Single pole double throw switch (SPDT)
Switching sequence: On-Off-On
Rated contact current: 5 A @ 250 V AC
Mounting type: Panel mount
Connection type: Soldering
Panel cutout diameter: 6.35 mm
Actuator length: 10.41 mm
Actuator material: Chrome-plated brass
Contact resistance: 10 mΩ
Standards met: RoHS & lead-free
Miniature toggle switch – RS series. Miniature toggle switches for PCB mounting in the RS series feature a low contact resistance and are available with either gold or silver as contact materials. The RS series miniature toggle switches have a minimum insulation resistance of 1000 MΩ and a minimum dielectric strength of 1000 V rms at sea level.
Switch + button type | Toggle |
Width | 39 mm |
Item number | 9949272 |
Manufacturer | RS PRO |
Category | Buttons + Switches |
Manufacturer No. | 7347123 |
Release date | 22.10.2018 |
Switch + button type | Toggle |
Operating mode | Rocker arm |
Nominal current | 5 A |
Manufacturer commitment | SBTi |
CO₂ emissions | 2.63 kg |
Climate contribution | CHF 0.11 |
Length | 73 mm |
Width | 39 mm |
Height | 20 mm |
Length | 4.70 cm |
Width | 1.80 cm |
Height | 2.80 cm |
Weight | 7 g |
