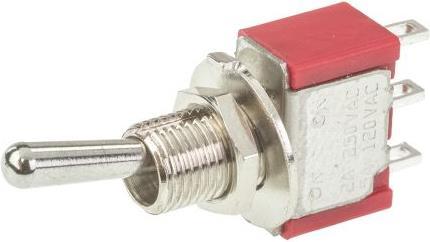

RS PRO Toggle switch,SP,on-none-on,solder lug
Delivered between Wed, 15.4. and Fri, 24.4.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 50.–
Product details
Contact arrangement = Single pole double throw switch (SPDT)
Switching sequence = Latching
Rated contact current = 5 A @ 250 V ac
Mounting method = Front panel mounting
Connection method = Soldering
Panel cutout diameter = 6.35mm
Actuator length = 10.41mm
Actuator material = chrome plated brass
Contact resistance = 10mΩ
Panel cutout size = 6.35mm
Toggle Switches, Miniature - RS Series. RS Series miniature PCB mount toggle switches with a low contact resistance are available with either gold (R) or silver (Q) contact material. The RS Series miniature toggle switches have a minimum insulation resistance of 1000 MΩ and a minimum dielectric strength of 1000 V rms at sea level.
Switch + button type | Toggle |
Width | 65 mm |
Item number | 9949256 |
Manufacturer | RS PRO |
Category | Buttons + Switches |
Manufacturer no. | 7347062 |
Release date | 22.10.2018 |
Switch + button type | Toggle |
Operating mode | Rocker arm |
Number of poles | 1x |
Nominal current | 2 A |
Manufacturer commitment | SBTi |
CO₂ emissions | 0.38 kg |
Climate contribution | CHF 0.11 |
Smart home | Not compatible |
Length | 75 mm |
Width | 65 mm |
Height | 17 mm |
Length | 12 cm |
Width | 8 cm |
Height | 0.40 cm |
Weight | 1 g |
Specifications may include unverified machine translations.
