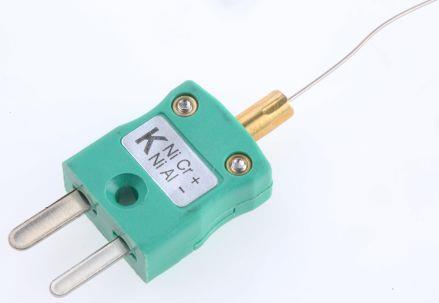

Rs Pro Thermocouple type K 150mm length 0,5mm DM

Thermocouple Type: K
Sensor Diameter: 0.5 mm
Sensor Length: 150 mm
Sensor Material: Nickel-Aluminum, Nickel-Chromium
Connection Type: Miniature Plug
Standards Met: IEC

Industrial sheath thermocouple, Type K, grounded junction. Type K is one of the most common types of thermocouples. K-type thermocouples are popular due to their low cost and high accuracy. They offer reliability and have a wide temperature range. Ungrounded junctions are also suitable for corrosive media and high-pressure applications. It provides a faster response than the isolated junction, as the measuring point is connected to the sheath.

Features and Benefits:

• Sheath thermocouple Type K, temperature range: –40 °C to +1100 °C
• Mini plug in flat connector design
• Very flexible, sheath can be shaped for many applications
• Hot junction of the thermocouple grounded with outer sheath for very fast response
• Miniature plug termination (200 °C)
• Complies with technical data according to IEC 584.
