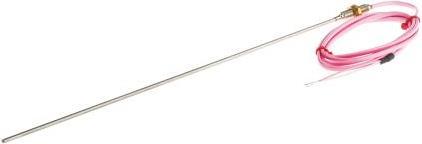

Rs Pro Temperature sensor type N

Thermocouple type: N
Probe diameter: 3 mm
Probe length: 300 mm
Sensor material: Nicrosil alloy
Connection type: Cable
Cable length: 1 m
Standards met: IEC

Probe and compression fitting, RS Pro, type K and N. Probe type K and N with PVC insulation and cable glands. Higher reliability and stability of our RS Pro thermocouples. Features and benefits: Probe, 300 mm x 3 mm. K probe with stainless steel sheath. N with Nicrosil sheath. The probe is equipped with an M8 x 1.0 adapter for installation. 1 m cable insulation: K PTFE, N PVC. Stainless steel compression fitting available with 1/8 BSP. Temperature range:

• K: 0° → +1000 °C
• N: -200 °C → +1300 °C
• Potting compound seal: 0° → +200 °C

Applications:

• Industrial
• Scientific
• Power generation
• Biotechnology
• Pharmaceutical industry
• Everyday appliances such as toasters, stoves, etc.

Types of thermocouples:

• Type K thermocouples: Type K is one of the most common types of thermocouples. Type K thermocouples are popular because of their low cost and high accuracy; they provide reliability and have a wide temperature range.
• Type J thermocouples: Type J is also widely used and very famous for low cost, good performance, and high reliability. Can be used in higher temperature ranges, but this may shorten its life.
• Type T thermocouples: Type T offers stability and consistency; you can typically expect Type T to be used in exceptionally low temperatures, such as freezing.
• Type N thermocouples: Type N has similar accuracy and temperature limits as Type K. Type N is slightly more expensive.
• Type L thermocouples: Type L specializes in measuring liquids such as liquid metals. They are often used in heating and apparatus engineering. This type of thermocouple is also inexpensive, efficient, and reliable.
