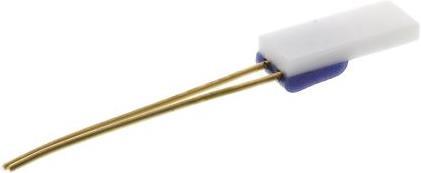

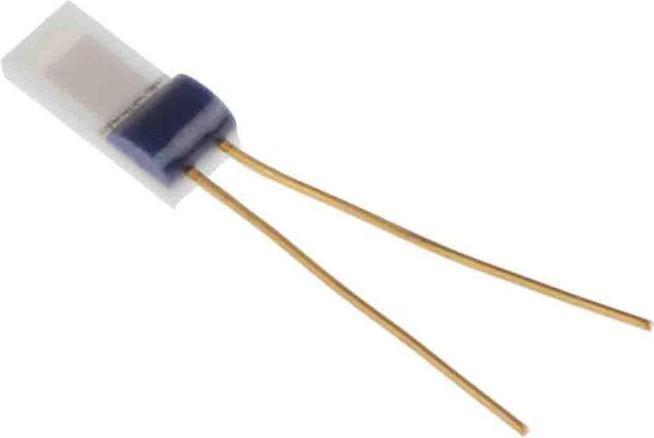

Rs Pro Temperature sensor Pt100 -50/+500°C 2x5mm

Sensor Type: Pt100
Sensor Length: 5 mm
Sensor Diameter: 2 mm
Minimum Temperature Measurement: -50 °C
Maximum Temperature Measurement: +500 °C
Connection Type: PC Pin
Sensor Material: Platinum
Number of Wires: 2
Accuracy: Class B
Response Time: 0.1 s

Platinum thin-film current sensing resistors. The thin-film platinum detector elements from RS Pro consist of a vapor-deposited sensing layer of platinum on a ceramic substrate. Thin-film elements offer the advantage of a small size and a wide range of resistance values. The thin-film detectors from RS Pro are available as PT100 or PT1000 platinum resistance elements. Features and benefits: fast thermal response, although the element is protected, encapsulated element in thin stainless steel, 2-wire cables with PTFE insulation, ideal for surface measurements, suitable for immersion, compact format.
