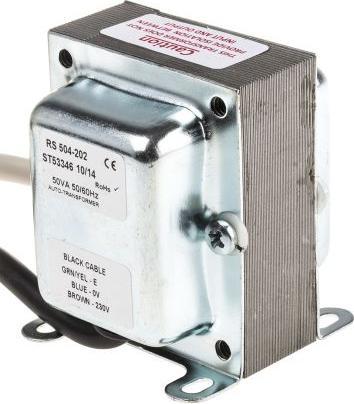

Rs Pro Step up/down autotransformer,50VA

Primary rated voltage: 230V AC
Secondary rated voltage: 115V AC
Rated power: 50VA
Construction type: Closed
Mounting type: Enclosure mounting, wall mounting, floor standing
Length: 58mm
Width: 63mm
Depth: 70mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Standards met: EN 61558

The mains connection of these units is not isolated. This is a step-up/step-down autotransformer designed for economy use in converting mains voltages at 50/60 Hz. It features a compact design with full paint impregnation and fully encased windings. Mounting is facilitated by four holes for fixed installation. The terminal blocks come with protective covers, except for the 50 VA terminal which has leads. Each unit undergoes 100% electrical testing and breakdown testing (2 kV winding against core) and is tested according to EN 61558.
