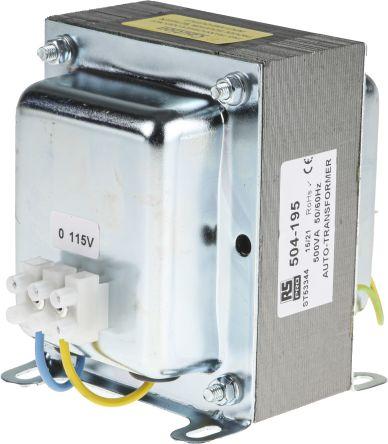

Rs Pro Step up/down autotransformer,500VA

Primary nominal voltage: 220 V AC, 230 V AC, 240 V AC
Secondary rated voltage: 115 V AC
Rated power: 500 VA
Construction type: Closed
Mounting type: Cabinet mounted, wall mounted, floor standing
Length: 98 mm
Dimensions: 98 x 145 x 118 mm
Depth: 118 mm
Operating frequency min.: 50 Hz
Operating frequency max.: 60 Hz
Standards met: EN 61558

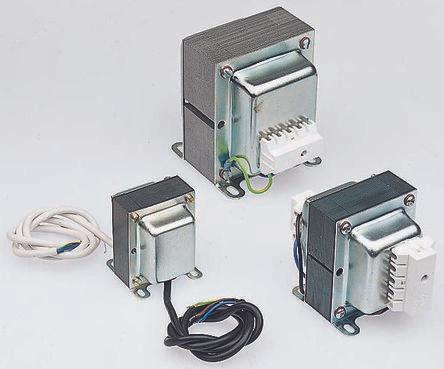

The mains connection of these units is not isolated. Step-up/step-down autotransformer. Economy transformers for step-up or step-down conversion of mains voltages at 50/60 Hz. Compact construction, fully enamel impregnated, fully encased windings, fixed by four holes for permanent installation. Terminal blocks with protective covers (except 50 VA terminal which has leads). 100% electrical testing and breakdown testing (2 kV winding against core). Tested to EN 61558.
