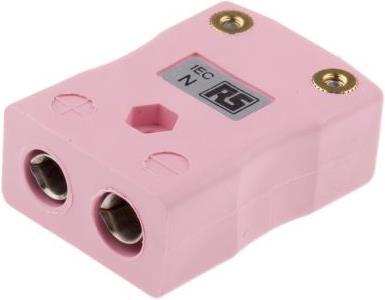

Rs Pro Standard thermocouple cable socket type N

Accessory variant: Standard quick wiring thermocouple socket.
For use with: Thermocouple type N
Standards met: IEC
Thermocouple type: N
Color: Pink
Connector size: Standard type
Connection type: Quickwire
Plug/Socket: Contact unit
Temperature min.: -35°C
Temperature max.: 220°C

Quickwire connector. Standard connector with solid round pin contacts. Available with thermocouple types K, J, T, E, N, R/S, B, and copper. Contacts are polarized to prevent misconnection. Standard size cable plugs and sockets allow for quick connection; just push the conductor in and tighten the screw, no terminal cover needs to be removed. Operating temperature: maximum +220°C. Socket and plug sold separately. For types K, J, T, E, and N, contacts are made of true thermocouple alloys. Type R/S has compensating copper/copper nickel alloy contacts (for type R or S thermocouples). Type B has compensating copper/copper contacts (for type B thermocouples). Color coding according to IEC specification.
