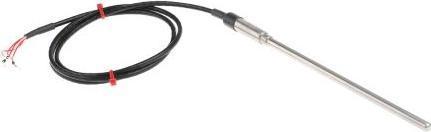

Rs Pro Pt100,Duplex,6mm x 150mm

Sensor Type: Pt100
Sensor Length: 150 mm
Sensor Diameter: 6 mm
Minimum Temperature Recorded: -50 °C
Maximum Temperature Recorded: +250 °C
Connection Type: Lead
Cable Length: 1 m
Sensor Material: Stainless Steel
Number of Wires: 2 x 3
Accuracy: Class B

Industrial and mineral-insulated duplex sensors Pt100. Double platinum resistance thermometer with 2 Pt100 measuring points at the probe tip. This allows one sensor to be connected to two measuring or control devices. One measuring point can also serve as a backup in case the other measuring point fails, eliminating the need to remove or replace the existing sensor. Pt100 dual element, Class B, 3-wire design, 6-core shielded cable, shielding made of stainless steel (316). Simple potting seal. Versions with mineral insulation can be carefully bent into shape.
