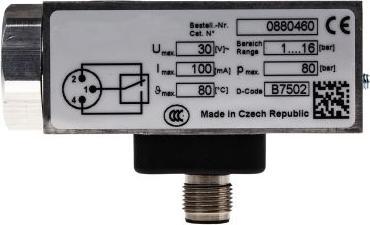

RS PRO Pneumatic Pressure Switch 1 - 16 Bar

Operating pressure min.: 1 bar
Operating pressure max.: 16 bar
Pressure type: Electromechanical
Suitable media: Compressed air, gas, pneumatic
Connection: M12 x 1
Rated voltage: 30V
Connection thread size: M12 x 1
Connection - standard thread: NPT
Operating temperature min.: -10°C
Operating temperature max.: +85°C
IP protection class: IP67
Minimum pressure setting: 1 bar

UL and CSA certified, the 18D pneumatic pressure switch from RS Pro is designed for intrinsically safe operation and features a microswitch with gold-plated contacts. Key features include a high number of switching cycles, vibration resistance up to 15 g, and an assortment of pressure ranges. The temperature range is from 0 °C to +80 °C, and it includes an FKM seal. This product is suitable for neutral, gaseous, and liquid fluids.
