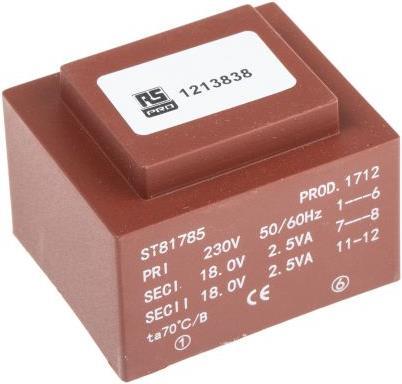

Rs Pro PCB Transformer 5VA 2x18V
Minimum order 2Delivered the day after tomorrow
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–
Product details
Secondary rated voltage: 2 x 18V AC
Nominal power: 5VA
Primary rated voltage: 230V AC
Number of outputs: 2
Length: 46.3mm
Width: 38mm
Depth: 32mm
Dimensions: 46.3 x 38 x 32mm
Weight: 200g
Mounting type: PCB mounting
Maximum temperature: +130°C
Minimum operating frequency: 50Hz
Maximum operating frequency: 60Hz
RS Pro PCB standard transformers are low voltage power transformers with a single 50/60 Hz primary winding rated at 230V AC. These transformers have secondary windings available for serial/parallel connection for a variety of current flow options. They are 100% electrically and flash tested. Featuring a dual section coil, high efficiency, and low temperature rise, these RS Pro transformers have low winding capacitance and low radiated noise.
input voltage | 230 V |
Output voltage | 18 V |
transformer type | PCB transformer |
Power | 5 W |
Item number | 9934973 |
Manufacturer | Rs Pro |
Category | Transformer |
Manufacturer no. | 1213838 |
Release date | 22.10.2018 |
External links | |
Minimum order | 2 |
Minimum order | 2 |
transformer type | PCB transformer |
input voltage | 230 V |
Output voltage | 18 V |
Power | 5 W |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 46.30 mm |
Width | 38 mm |
Height | 46.30 mm |
Weight | 200 g |
