Product details

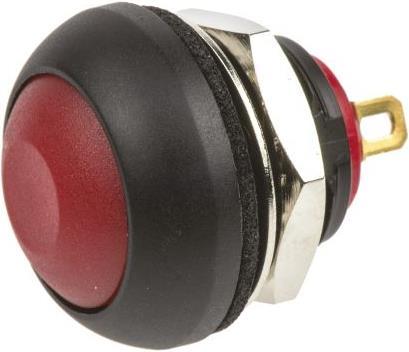

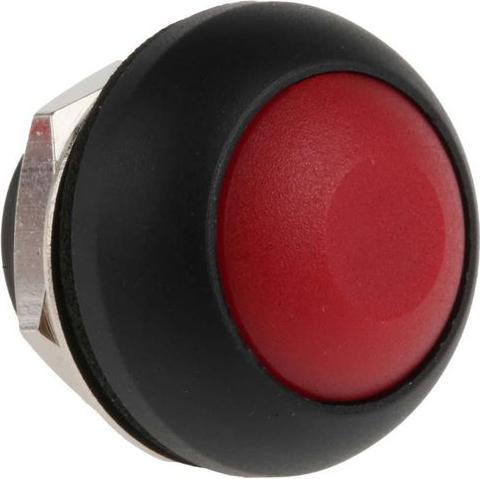

The push-button switch, 2-pole in red, is a versatile and reliable control element that is ideal for various applications. With a switching sequence based on buttons, this switch allows for precise control of electrical devices. The front panel mounting ensures easy installation, while the compact design and a diameter of 13.6 mm enable flexible integration into different enclosures and panels. The switch is designed for a contact arrangement as a single-pole on/off switch (SPST) and offers a high mechanical lifespan of up to 1,000,000 cycles, making it a durable solution for numerous applications. Additionally, the switch meets standards for lead-free and RoHS compliance, making it an environmentally friendly choice.
- Contact rated current of 400 mA at 32 V AC
- Actuation force between 2 N and 5 N
- Mechanical lifespan of up to 1,000,000 cycles
- Available in snap-in or threaded bush mounting
- Maximum soldering temperature of 350 °C for 5 seconds.
Colour | Black |
Switch + button type | Push-button switch |
Number of actuation levels | 1 x |
Width | 66 mm |
Item number | 9898768 |
Manufacturer | RS PRO |
Category | Buttons + Switches |
Manufacturer no. | 7346710 |
Release date | 16.10.2018 |
Sales rank in Category Buttons + Switches | 44 of 18322 |
Minimum order | 7 |
Minimum order | 7 |
Colour | Black |
Exact colour description | Black/Red |
Material | Polyamide (PA 66) |
Switch + button type | Push-button switch |
Number of actuation levels | 1 x |
LED colour | without LED |
Number of poles | 1 x |
Nominal voltage | 125 V |
Nominal current | 0.40 A |
Protection type (IP code) | IP67 |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Length | 75 mm |
Width | 66 mm |
Height | 22 mm |
Length | 13.80 cm |
Width | 7.80 cm |
Height | 1.10 cm |
Weight | 5 g |
Specifications may include unverified machine translations.
