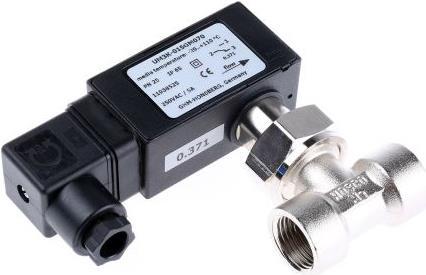

Rs Pro PADDLE FLOW SWITCH G1/2

Monitored medium: Gas, liquid
Device type: Actuating element
Minimum flow rate: 5.5 l/min
Maximum flow rate: 7 l/min
Supply voltage: 250 Vac
Pipe diameter range: 15 mm
Connection type: 1/2 BSP internal thread
Maximum pressure: 25 bar
Material: Nickel-plated brass
Maximum medium temperature: +110 °C
Maximum operating temperature: +110 °C
Rated current: 5 A

Primarily used in water applications. When used in oil circuits, deviations in readings may occur due to the viscosity of the liquid. The paddle flow switch monitors the liquid flow using a paddle. A spring-loaded stainless steel paddle in the flow chamber is driven by the medium in the direction of flow. Upon reaching a preset flow rate, the magnet connected to the paddle approaches a magnet located outside the flow chamber, which is coupled with a microswitch. This creates a threshold when the actual flow rate is above or below a preset value. Relatively low pressure loss, insensitive to contamination, powerful microswitch. All function-critical parts made of stainless steel. Field-adjustable switch for switching operations at decreasing flow. Commonly used as an indicator that something is no longer functioning, e.g., in cooling circuits, heating/ventilation/air conditioning systems, laser circuits, heat exchange (water coolers).
