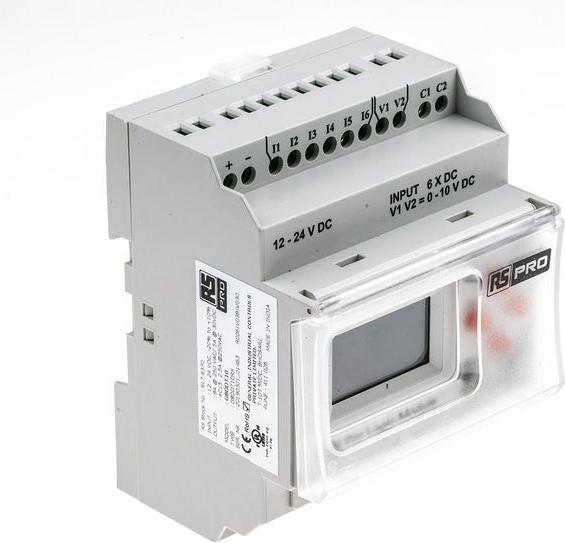

RS PRO Logic Module w. Display 8I/4O 12-24V

Supply voltage: 12 to 24 V DC
Output type: Digital, Relay
Number of outputs: 4
Input type: Analog, Digital
Number of inputs: 8
Mounting type: DIN top hat rail
Width: 72 mm
Depth: 65 mm
Connection type: Screw
Programming language used: Ladder diagram programming
Network type: ModBus
Output current: 8 A
Application: Commercial, Industrial

RS Pro logic modules are designed for use in automation for commercial and industrial sectors. Controllers are available with and without an LCD screen.

Properties and advantages:

• Logic control with relay output
• 4 outputs: 8 digital inputs, 2 of which can be used as analog inputs
• Supports up to 48 I/Os (32 DI/16 DO)
• Available with and without LCD screen
• Backlit LCD for display, modification, and programming
• 250 lines of ladder programming

Software functions:

• 16 soft text messages
• Timers
• Reference counters
• 12 analog functions
• 4 hour counters

PC software for:

• Programming
• Online and offline simulation
• Documentation and printing

Applications:

• HVAC controllers
• Machine controls for motor, pump, and valve
• Vehicle control monitoring
• Baggage handling
• Conveyor belt systems and elevators
• Outlet and filter systems
• Water treatment systems
• Printing and packaging machines
• Indoor and outdoor lighting control
• Door, gate, shutter, blind, and awning control
• Irrigation control systems
• Automation of compressors and pumps for air conditioning systems.
