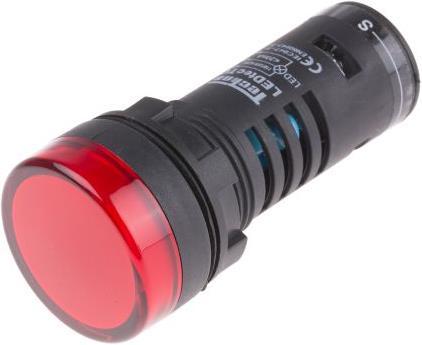

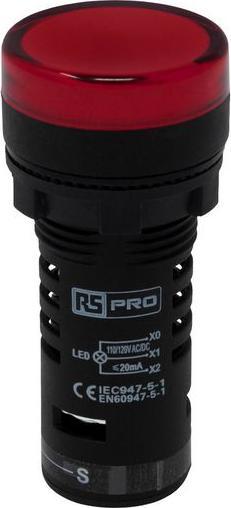

RS PRO LED Indicator 22mm Red 110V Test Circuit

Operating voltage: 120 V AC/DC
Indicator light color: Red
Cut-out diameter: 22 mm
Lamp type: LED
Mounting type: Panel mount
Protection class: IP65
Connection type: Screw fastening
Series: LEDtec
Rated current: 20 mA
Indicator shape: Round

Control station with LED signal lights, complete units, and test circuit. The RS series of LED signal lights with multi-chip technology offers bright and uniform colors with low power consumption. This series of indicators provides the same illumination as standard LED signal lights but features an additional terminal block for connecting the test circuits of the lamps. Installation is quick and easy with a locking nut on the back of the panel and captive screw connection terminals. The voltage range extends from 12 V to 230 V, and you can choose from red, green, yellow, blue, and white colors. This series of LED signal lights meets the IP65 protection class and has an operational lifespan of 30,000 hours. Test circuit operational lifespan up to 30,000 hours, color options, multi-chip technology, voltage range of 12 to 230 V, brighter colors, quick and easy installation, IP65. Control stations with 22 mm display and test circuit.
