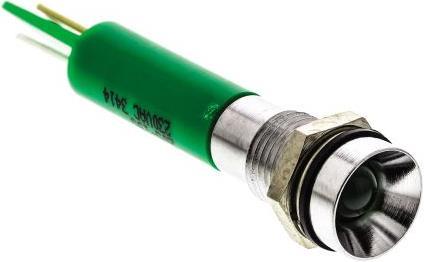

Rs Pro LED 5mm diameter,satin chrome,230V,green

Rated voltage: 230 Vac
Signal color: Green
Mounting hole diameter: 8 mm
Lamp type: LED
Lamp size: 5 mm
Connection type: Plug-in
Aperture shape: Recessed
Aperture color: Chrome
Current: 3 mA
Intensity: 60 mcd
Length: 41 mm

8 mm LED displays from RS Pro. This series of high-quality indicators is an excellent solution for applications requiring a signal or warning light. The quality and reliability of each indicator and LED provide high brightness and long life with low power consumption. The housing of these indicators includes a convenient solder lug, allowing for quick and easy connection for your application.

Features and benefits:

• 5 mm epoxy diffusing lens, colored, for diffused light
• Available LED colors: red, green, and yellow
• Solder lug terminals for quick installation
• Matte black and black chrome-plated brass bezels available
• Terminals: 2.8 mm x 0.8 mm
• Various voltage ratings

Indicators can be installed on printed circuit boards as well as mounted on pushbuttons and switches. They are mainly used for printed circuit boards and electronic designs due to their relatively small size compared to other types of indicators, such as automotive indicators. The LEDs contained in the device are reliable and of excellent quality.

Why choose LEDs? LEDs offer many advantages, with longevity and low power consumption being the main selling points. Additionally:

• Temperature: LEDs emit a much lower temperature compared to incandescent or neon lamps.
• Direction: LEDs emit light in only one direction, eliminating the need for additional components such as reflectors. However, this does not apply when the LED display is used as a PCB signal.
