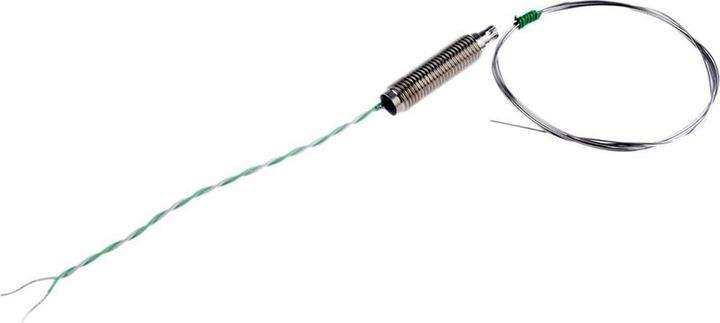

RS PRO K ungrounded insulated probe,0.5x1000mm

Type K Thermocouples
Probe diameter: 0.5 mm
Probe length: 1 m
Probe material: Inconel 600, stainless steel
Connection type: Cable
Cable length: 100 mm
Standards met: IEC

Color coding according to IEC-584. Industrial sheath thermocouple, Type K, ungrounded junction. Type K thermocouples are devices for temperature measurement that consist of two wires made of different materials. When these two wires are connected, they form an electrical connection. When the temperature at this junction changes, a voltage is generated, which can be used to read the temperature. This phenomenon is also known as the Seebeck effect.

Features and benefits: The measuring junction is insulated by the sheath. Very flexible, the sheath can be shaped for many applications. Three-year warranty. Offers a selection of 310 stainless steel, which has high corrosion and oxidation resistance for a wide range of processes and performs satisfactorily in sulfur-containing atmospheres, or Inconel® Alloy 600 sheath, which has excellent oxidation resistance of up to 1100 °C.

Typical applications: This industrial mineral probe Type K with ungrounded junction is suitable for corrosive media, although its thermal response tends to be slower than that of others. In some typical applications where more than one thermocouple is connected with the corresponding measuring equipment, insulation may be essential to avoid false signals in the measurement circuits.
