Product details
Contact arrangement: 1-pole on/off switch
Switching sequence: On-Off
Rated contact current: 16 A @ 125 V AC
Mounting type: Front panel mounting
Connection type: Blade terminal
Illuminated: Yes
Panel cutout diameter: 20.2 mm
Actuator length: 16 mm
Actuator material: PC
Contact resistance: 50 mΩ
Operating temperature range: -20 to +85 °C

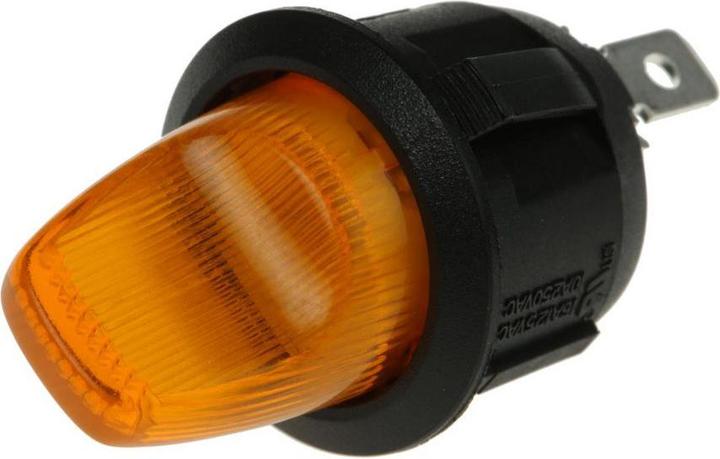

CSA (file no. UL45128), VDE (file no. 11037-4401), UL, ENEC, CQC. RS toggle switch, illuminated. Attractive, ergonomically designed switches with wing-shaped illuminated actuators. Optionally available in colorful, illuminated versions in green, yellow, and red. Round snap-in switches, easy to install in front panel. Nylon enclosure conforms to UL 94V-2 with 4.8 mm blade terminals.
Colour | Yellow |
Switch + button type | Toggle |
Width | 51 mm |
Item number | 9945227 |
Manufacturer | RS PRO |
Category | Buttons + Switches |
Manufacturer no. | 419849 |
Release date | 22.10.2018 |
Minimum order | 10 |
Colour | Yellow |
Exact colour description | Yellow |
Switch + button type | Toggle |
Number of poles | 1 x |
Nominal voltage | 125 V |
Nominal current | 16 A |
Switch + push-button Additional function | Lighting |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Packaging |
Length | 73 mm |
Width | 51 mm |
Height | 21 mm |
Length | 11.20 cm |
Width | 9.80 cm |
Height | 1.40 cm |
Weight | 11 g |
