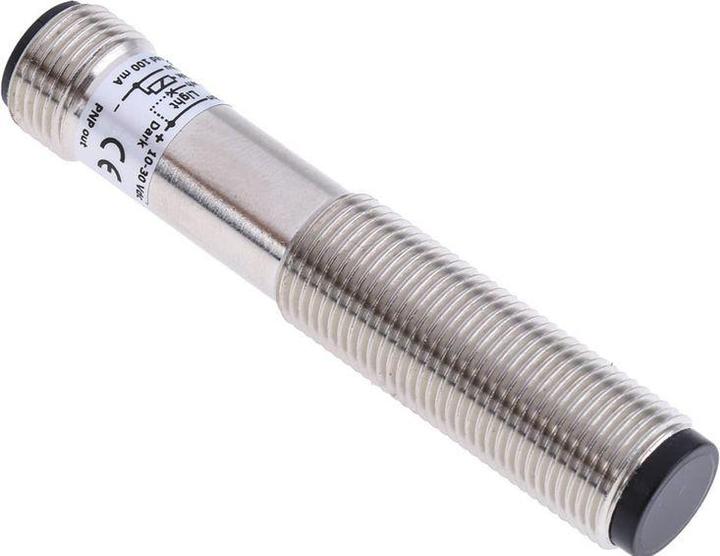

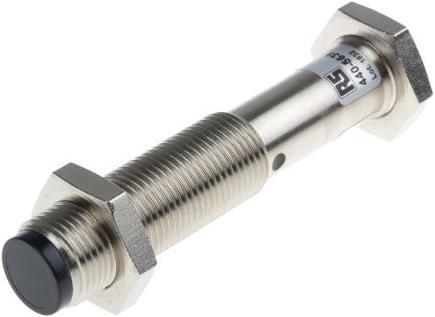

Rs Pro High speed fibre optic amplifier,PNP o/p
Only 2 items in stock at third-party supplier
Product details
Sensor type = Cylindrical
Operating mode = Diffuse
Detection range = 100 mm
Output type = PNP
Connection = M12 connector
DC voltage max. = 30V
Optical technology = Phototransistor
Light source = Infrared
Protection class = IP67
Current max. = 100 mA
Housing material = Nickel-plated brass
Operating temperature max. = +70°C
Diffuse and reflective sensing, M12. Pluggable optical proximity switch In nickel-plated brass housing Available with diffuse sensing or reflective sensing Open collector output (PNP) that closes when illuminated LED on rear indicates switching status Short-circuit protected output Housing protection class IP67 Reverse polarity protection Low power consumption For suitable plug-in cables, see proximity switch accessories in this chapter.
Transmission type | Infrared |
Item number | 9727320 |
Manufacturer | Rs Pro |
Category | Home automation |
Manufacturer no. | 4405639 |
Release date | 24.9.2018 |
External links |
Automation type | Sensor |
Transmission type | Infrared |
Range | 0.10 m |
Manufacturer Type | Optical sensor |
Bulb type | Infrared |
Electric current output | 0.10 A |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 135 mm |
Width | 41 mm |
Height | 20 mm |
