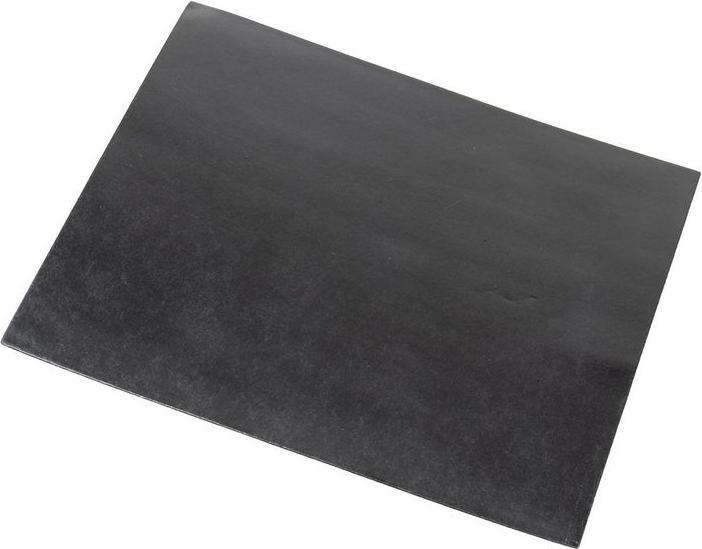

RS PRO Heat conducting material, 10W/m-K, graphite Self-adhesive, thickness 0.16mm, 150 x 150mm

The thermal interface material from Rs Pro is a self-adhesive thermal pad specifically designed for applications where efficient heat transfer is required. With a thermal conductivity of 10 W/m·K and a thermal resistance of 280 mW/°C, this product offers excellent performance for effectively dissipating heat between components. The pad has a thickness of 0.16 mm and a square shape with dimensions of 150 x 150 mm, making it versatile for various uses. It is suitable for operating temperatures ranging from -50 °C to 150 °C, ensuring reliable performance in different environments. The use of graphite as the material provides high elasticity and flammability according to UL 94 V0, offering additional safety. This thermal pad is ideal for applications in electronics where efficient heat dissipation is crucial.

• Operating temperature from -50 °C to 150 °C
• Dielectric strength of up to 12 kV/mm
• Excellent elasticity and flexibility
• Flammability according to UL 94 V0
• High-quality graphite material for optimal heat conduction.
