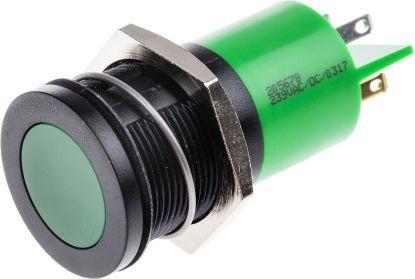

RS PRO Green LED flat lens black plastic,230Vac

Nominal voltage: 230 Vac
Signal color: Green
Mounting hole diameter: 22 mm
Lamp type: LED
Lamp size: 16 mm
Connection type: Plug
IP protection class: IP67
Cutout shape: Flat
Cutout color: Black
Current: 3 mA
Brightness: 66 mcd
Length: 64 mm

Includes mounting nut and seal. It is recommended to insulate unused spare connections. The LED panel signal lights feature a mounting hole of 22 mm, compatible with 130 and 230 Vac/dc, and include a lamp tester. The product has round or flat colored lenses with a diameter of 16 mm and a black plastic frame with a diameter of 25 mm. The mounting hole diameter ranges from 22 mm to 22.5 mm and has a housing with an IP67 protection class. It also includes an additional positive connection for the lamp testing device and two negative connections for daisy chaining, with connection terminals of 0.11 inches (2.8 x 0.8 mm).
