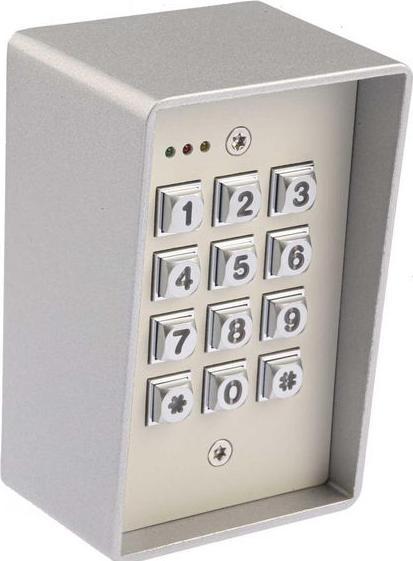

Rs Pro External Digital Keypad Entry System
Electronic numerical code8 items in stock at third-party supplier
Product details
Number of doors max. = 1
Number of codes = 20
Status display = Acoustic, LED
Keypad material = die-cast aluminium
Keypad material = die-cast aluminium
AC or DC operation = DC
Supply voltage = 12V dc
Access keypad, RS Pro. About me. Die-cast aluminium Dimensions (H x W x D): 123 x 77 x 64 mm Surface mounting Keypad with backlighting Operating voltage: 12 V dc 4 or 5 digit programmable codes PIN codes with up to 20+1 digits possible Dual relay output for multiple control Door reed switch input for protection against unauthorised consequences Fully programmable via keypad and master code 3 LED indicators with audible indication - green, red, yellow. Display signal diagram. Green LED - power indicator, standby, 1 beep (effective PIN codes, each key pressed) Red LED - relay 1 activated, 2 beeps (enter/leave program code) Yellow LED - relay 2 activated, 3 beeps (data calculation error), 5 beeps (master code factory setting - 12345).
Access system type | Code lock |
Closing mechanism | Electronic numerical code |
Item number | 10370391 |
Manufacturer | Rs Pro |
Category | Access control |
Manufacturer no. | 7748162 |
Release date | 28.1.2019 |
External links |
Colour | Silver |
Exact colour description | Die-cast aluminium |
Material group | Metal |
Material | Die-cast aluminium |
Access system type | Code lock |
Closing mechanism | Electronic numerical code |
Country of origin | Taiwan |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 16.20 cm |
Width | 9.20 cm |
Height | 7.20 cm |
