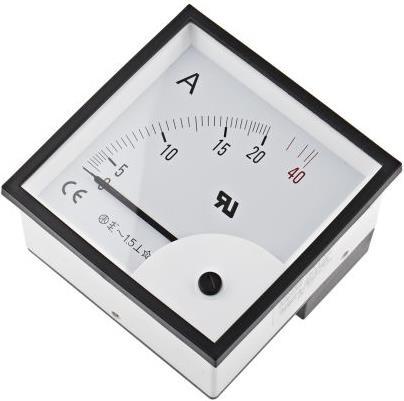

Rs Pro AC Ammeter 96x96 90 deg 0-20/40A

Display value max: 40A
Current type: AC
Measuring unit: Moving iron
Cut-out height: 92mm
Cut-out width: 92mm
Depth: 45mm
Accuracy: ±1.5
Temperature min: -25°C
Temperature max: +50°C
Minimum displayed value: 0A

IEC51, BS89, DIN 43780, VDE 0410 analogue moving iron ammeter; moving iron meter for alternating current; panel mounting; ABS and polycarbonate case; case and terminal protection material: UL 94V0; accuracy class 1.5; operating temperature range: -25 to +50 °C. Features and benefits.
