RS PRO 8mm HE red LED recessed,24Vdc 50mm lead

Nominal voltage: 24 Vdc
Signal color: Red
Mounting hole diameter: 8 mm
Lamp type: LED
Lamp size: 5 mm

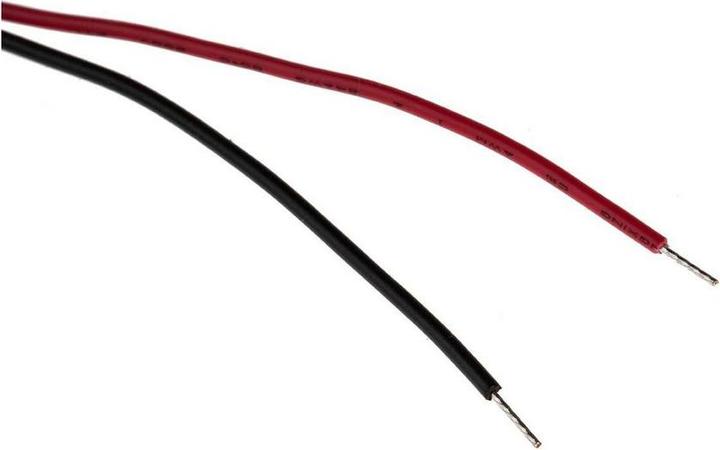

Connection type: Connection wires
Cutout shape: Recessed
Cutout color: Black
Current: 20 mA
Brightness: 10,000 mcd
Length: 15 mm

8 mm Snap-In LED indicators from RS Pro. This series offers high-quality LED indicators with diffuse epoxy lenses and a black plastic frame. Key features include a 500 mm long connection with wires and a convenient snap-in design for quick installation. LED indicator lamps provide high brightness and are durable due to their low energy consumption. All models are reliable and of excellent quality.

Features and benefits:

• 5 mm epoxy diffusion lens for diffuse light
• Available LED colors: Red, Green, and Yellow
• Connection length: 500 mm
• Snap-in function
• Various nominal voltages

The snap-in function allows for easy installation without special mounting materials. The indicators can be quickly attached by pushing them through the mounting hole, where plastic tabs snap into place to secure the indicator.

The advantages of LEDs include durability and low power consumption. Additionally, LEDs emit a lower temperature compared to incandescent or neon lamps and provide directed light, eliminating the need for reflectors unless used as PCB signals.
