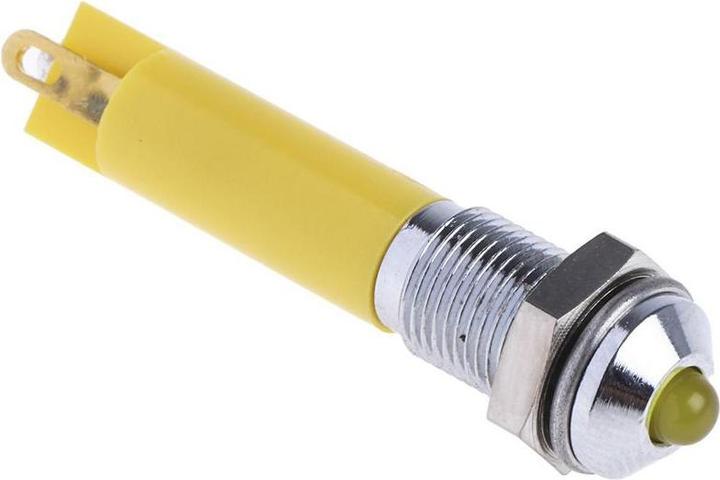

RS PRO 6mm yel LED satin chr prominent,24Vdc

Nominal voltage: 24 Vdc
Signal colour: Yellow
Mounting hole diameter: 6 mm
Lamp type: LED
Lamp size: 3 mm
Connection type: Soldering lug
Orifice shape: Protruding
Aperture colour: Chrome
Current: 20 mA
Intensity: 30 mcd
Length: 34.4 mm

6 mm LED displays with soldering flat plug connection from RS Pro. This series of high-quality displays offers an excellent solution for applications requiring a signal or warning light. The quality of the individual displays and LEDs ensures high brightness and long life with low power consumption. Each display includes a convenient soldering lug for quick and easy connection. All models are very reliable and of excellent quality.

Features and benefits include a 3 mm epoxy diffuser for diffuse light, flat terminals with 2 mm x 0.5 mm soldering flat terminals, and colour-coded terminal tabs for polarity (gold for positive, silver for negative).

Displays can be installed on printed circuit boards or mounted on push buttons and switches. They are mainly used for printed circuit boards and electronic designs due to their relatively small size compared to other types of displays, such as car indicators.

LEDs offer many advantages, including long life and low power consumption. Additional benefits include lower operating temperature compared to incandescent or neon lamps and directional light emission, which eliminates the need for reflectors in most applications.

Each LED indicator is supplied complete with a mounting nut, washer, and gasket.
