Rs Pro

Rated primary voltage = 15 to 400V AC
Rated secondary voltage = 2 x 12V AC
Nominal power = 40VA
Mounting type = DIN rail mounting, screw mounting
Length = 66mm
Width = 66mm
Depth = 88mm
Operating frequency min. = 50Hz
Operating frequency max. = 60Hz
Weight = 900g

RS Pro panel isolating transformers are single-phase and designed for general applications. These high-quality transformers feature screw terminals for multiple inputs and can be mounted using screw brackets or DIN rails. They have a standard primary winding for 0-230-400V AC with adjustment options of +/- 15V around 0, and they are 100% electrically and flash tested.

Characteristics include high-quality safety and insulation transformers, a coil core in the second section for complete separation between primary and secondary winding, low-noise sheet metal packages, a supplied ground terminal, high efficiency, and lacquer impregnation.

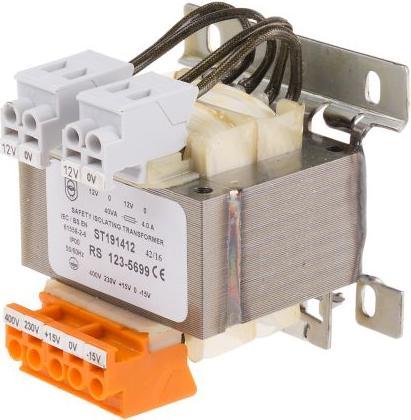

Actual product image Rs Pro 40VA Isolation Transformer 2x12V
