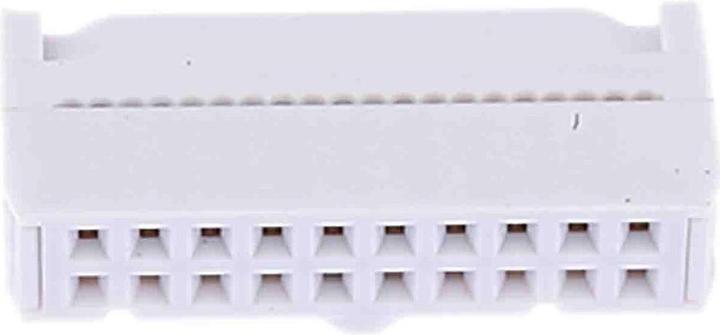

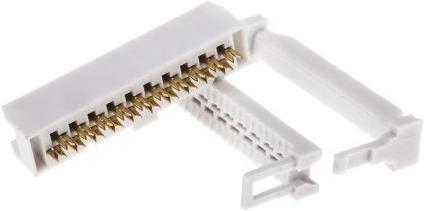

RS PRO 20 way IDC bump polarised socket,1A

Save CHF1.–
Ratings
BrandMore from RS PRO
Delivered between Tue, 30.12. and Sat, 3.1.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Number of contacts: 20
Number of rows: 2
Gender: Female
Pitch: 2.54mm
Mounting type: Cable mounting
Housing orientation: Right angle
Connection type: IDC
Rated current: 1A
Contact plating: Gold over nickel
Operating temperature min: -55°C
Operating temperature max: +105°C
Contact material: Phosphor bronze

Receptacle with reverse polarity protection. It features centered reverse polarity protection and reverse polarity protection grooves with double depth in the socket body. Compatible with connectors according to BS9525-F0023 and F003+, DIN41651, MIL-C-83503, and BT224.

Key specifications

Cable + connector type
Various
Cable length
0.12 m
Item number
9948061

General information

Manufacturer
RS PRO
Category
Cables + Plugs
Manufacturer no.
6257397
Release date
22.10.2018
External links
Manufacturer's site (de)

Colour

Colour
Grey

Material

Material group
Plastic
Material
Polybutylene terephthalate (PBT)

Cable + Connector Features

Cable + connector type
Various
Max. temperature
105 °C
Min. temperature
-45 °C
mounting type
Cable installation
Cable length
0.12 m
Manufacturer Type
6257397
Connectors Design
Flange bushing
Number of cores
20 x

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
1A, Bush, Grey, IDC connector, Number of contacts - 20, Right angled

Product dimensions

Length
12 cm
Width
9 cm
Height
1.20 cm

Package dimensions

Length
8.60 cm
Width
7.40 cm
Height
1.10 cm
Weight
14 g
