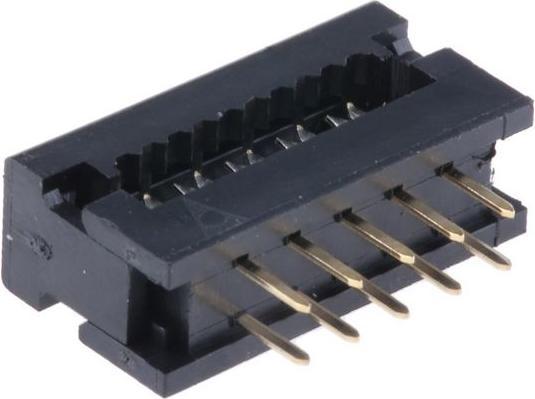

Rs Pro 10 way IDC 2 row transition connector

Minimum order 7
Ratings
Delivered between Wed, 2.7. and Fri, 11.7.
More than 10 items in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Number of contacts: 10
Number of rows: 2
Gender: Male
Pitch: 2.54 mm
Mounting type: Cable mounting
Housing orientation: Right angle
Connection type: IDC
Rated current: 3 A
Contact coating: Gold
Operating temperature min: -40°C
Operating temperature max: +105°C
Contact material: Brass

Two pole transition connectors. RS Pro's IDC connector consists of 2-row transition connectors on a 2.54 mm pitch. This cable connector has 16 contacts and a right angle orientation. It features brass contacts with 0.8 μm gold plating. Features and benefits include 0.8 μm gold plated pins, right-angle alignment, and brass contacts.

Key specifications

Plug type
DC connector
Cable + connector type
Plug connectors
Cable length
0.09 m
Item number
9946757

General information

Manufacturer
Rs Pro
Category
Cables + Plugs
Manufacturer no.
6425073
Release date
22.10.2018
External links
Manufacturer's site (de)
Minimum order
7
Minimum order
7

Colour

Colour
Black

Material

Material group
Plastic
Material
Polybutylene terephthalate (PBT)

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
DC connector
Max. temperature
105 °C
Min. temperature
-40 °C
mounting type
Cable installation
Cable length
0.09 m
Manufacturer Type
10-pole / 2-row, Grid 2.54mm, IDC connector Plug 90° angled
Connectors Design
Angled
Number of cores
10 x

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
3A, Black, IDC connector, Male, Number of contacts - 10, Right angled

Product dimensions

Length
9 cm
Width
9 cm
Height
0.50 cm

30-day right of return
24 Months Warranty (Bring-in)
