RME Audio M-32 Ad
ConvertersOnly 1 piece in stock at supplier
Product details

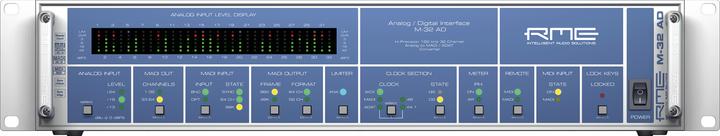

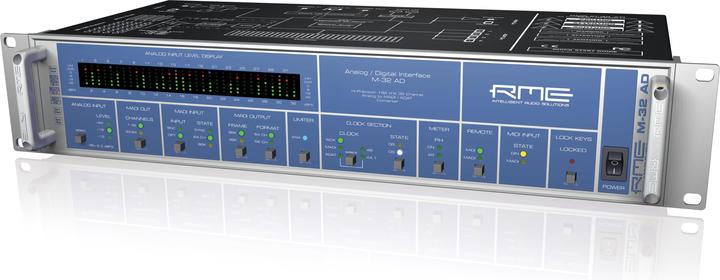

RME's M-32 AD is a 32-channel high-end AD converter with user-friendly operation and comprehensive features. The device combines excellent analog circuit technology with outstanding next-generation AD converters, providing top-level AD conversion - 32 times! It includes analog limiters, three hardware reference levels up to +24 dBu, MADI I/O, and ADAT I/O with up to 192 kHz, inputs via 6.3 mm jacks and D-Sub, remote control via MIDI, operation across a wide mains voltage range, and a compact 2U high chassis, making it unique.
Designed and optimized for professional use in broadcasting, studios, and on stage, it also features an exceptional limiter that can reduce analog input overload by up to 17 dB without audible distortion (maximum input level +30 dBu). The M-32 AD offers multi-channel conversion at reference level - with an unmatched price-performance ratio!
Highlights include: 32-channel AD converter, fully balanced design, 116 dBA, only 2U high 19" chassis, 1 x MADI I/O, 32 channels @ 96 kHz, 16 channels @ 192 kHz, 4 x ADAT Out, 16 channels @ 96 kHz, 8 channels @ 192 kHz, zero-delay MADI I/O allows cascading without delay compensation, switchable analog limiters, 32 LED level meters with 5 LEDs each, channel-wise display of limiter status via 32 LEDs, SteadyClock, digital hybrid clock for optimal sound, SyncCheck, unique technology for checking clock synchronization, storage of all settings, fully remote controllable via MIDI and MIDI over MADI.

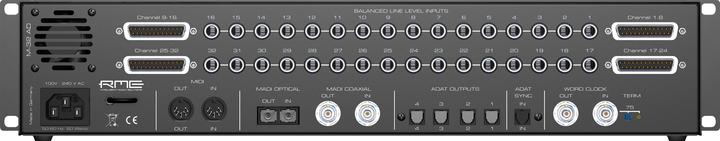

Connectivity M-32 AD: 32 x Analog In, M-16 AD: 16 x Analog In, 1 x MADI I/O (optical and coaxial), 4 x ADAT Out (TOSLINK), 1 x ADAT In (for synchronization only), MIDI I/O (5-pin DIN), Wordclock I/O (BNC).
Audio area of use | Recording studio |
Documents | |
Item number | 6338294 |
Manufacturer | RME Audio |
Category | Audio effects |
Release date | 31.5.2017 |
External links |
Colour | Black, Blue, Silver |
Exact colour description | Black, Blue, Silver |
Audio area of use | Recording studio |
effect type | Converters |
Number of faders | 32 x |
Number of rack units | 116 x |
Number of channels | 32 x |
Effects unit Format | 19" |
Signal processing | Analogue |
Audio inputs | 6.3 mm jack (32x), MIDI (1x) |
Audio outputs | MIDI (1x) |
CO₂-Emission | |
Climate contribution |
Depth | 20 cm |
Width | 48.30 cm |
Height | 8.80 cm |
