R&G carbon layer st 80 g/m² (ud) 50 cm, roll/ 5 m

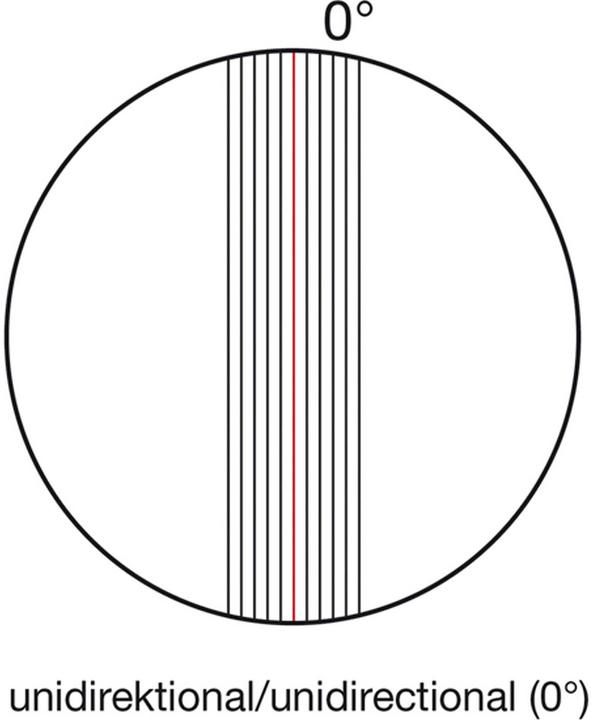

Features: All filaments are perfectly parallel, not twisted to the right or left, allowing the properties of each individual fiber to be fully utilized, resulting in a composite with excellent physical-mechanical properties. The thickness is consistent across the entire width of the fabric. All physical parameters have very strict tolerances. Filaments are held by very thin (76 dtex) polyester bonding thread grids (3.5 g/m², one-sided). The surface of the fibers is smooth, simplifying processing. Application area: Coatings and laminates in model making, sandwich components, technical parts that are primarily subjected to bending. Advantages of the material: nearly 100% utilization of fiber properties, especially significantly higher compressive strength than fabrics; higher fiber content possible, any cuts without fraying. Back side with release film for peeling off. Calculated data for hand laminates with 45 vol. % fibers: Resin consumption: 63 g/m², laminate thickness: 0.10 mm, laminate weight: 143 g/m². Technical data: Tensile strength: 4137 MPa, tensile modulus: 242 GPa, elongation at break: 1.5%, density: 1.81 g/cm³, filament diameter: 7.2 µm. Classification of the substance or mixture 1/2020: Regulation (EC) No. 1272/2008. Hazard statements: May cause allergic skin reactions. Labeling elements: Regulation (EC) No. 1272/2008. Hazardous components for labeling: Reaction product: Bisphenol-A-epichlorohydrin; epoxy resin (average molecular weight <= 700). Hazard statements: H317 May cause allergic skin reactions. Safety advice: P280 Wear protective gloves. Special labeling of certain mixtures: EUH208 Contains reaction product: Bisphenol-A-(epichlorohydrin); epoxy resin (average molecular weight >/= 700). May cause allergic reactions. Note on labeling: Not classified as hazardous according to the Hazardous Substances Ordinance/EC directives. Other hazards: Exempt quantity: 192080050-UUD-5.
