RAK Wireless WisBlock RAK1904 3-axis acceleration sensor LIS3DH
Supplied by
Free shipping starting at 50.–
This is a WisBlock LIS3DH accelerometer module from RAK Wireless. The built-in ST LIS3DH measures acceleration values in 3-axis of up to ±16g. The measuring range can be adjusted to the following ranges: ±2g, ±4g, ±8g or ±16g. The data acquisition rate can be set from 1Hz to 5.3kHz depending on the application. A ready-to-use SW library is available to make your application easy.
RAK Wireless' WisBlock ecosystem offers compact and modular solutions to create your own IoT LoRaWAN nodes. A wide range of CPU, sensor and IO expansion modules can be mounted on a WisBlock base board. Unlike conventional plug-in connections, the modules are fixed to the base board with screws. This creates a secure and reliable mounting with industrial quality. Thanks to the modular and compact design, WisBlock is particularly suitable for applications in prototype construction in the professional or hobby sector.
Features:
ST LIS3DH Triaxial Accelerometer
Low power consumption
Adjustable measurement range of ±2g, ±4g, ±8g or ±16g
Adjustable data acquisition rate from 1Hz to 5.3kHz
Internal buffer for 32 levels of 16-bit data
Technical details:
Manufacturer: RAK Wireless
Manufacturer SKU: 100013
Model: RAK1904
Sensor: ST LIS3DH
Measuring range: ±2g, ±4g, ±8g or ±16g
Data acquisition rate: 1Hz to 5.3kHz

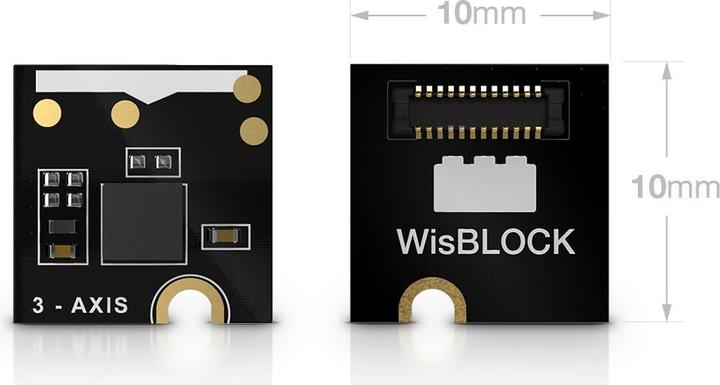

Dimension: 10 x 10 x 2.7mm
Weight: 2.6g
Scope of delivery:
1x WisBlock RAK1904 3-axis accelerometer LIS3DH.
Item number | 24893168 |
Manufacturer | RAK Wireless |
Category | Development board accessories |
Release date | 26.3.2023 |
Compatible hardware | Various |
Development board Accessory type | Heatsink development board |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1x WisBlock RAK1904 3-axis acceleration sensor LIS3DH |
Length | 1 cm |
Width | 1 cm |
Height | 0.27 cm |
Weight | 2.60 g |
