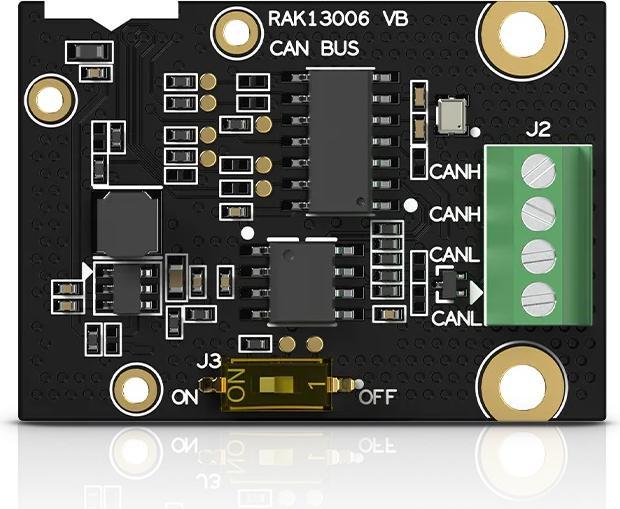

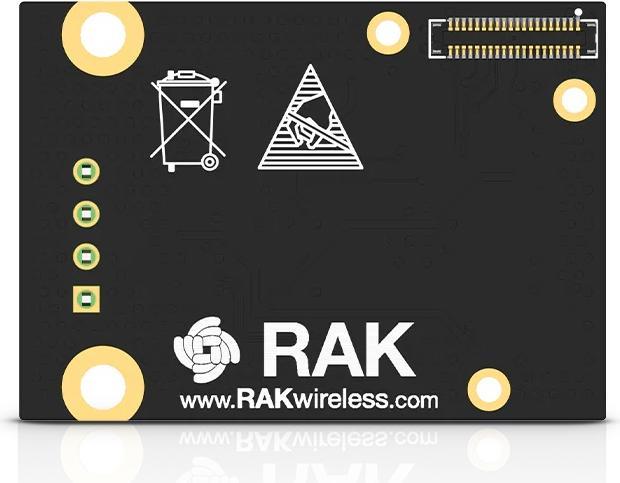

RAK Wireless WisBlock RAK13006 CAN Bus Interface MCP2518FD

This is a WisBlock CAN Bus expansion module from RAK Wireless. The RAK13006 with the MCP2518FD microchip enhances your WisBlock project with a CAN (Controller Area Network) interface. It is used in cars, trucks, and building automation, providing secure data transmission as it utilizes differential signals. The RAK13006 supports high-speed CAN up to 1 Mbit/s. The module connects to the 40-pin IO slot of a RAK BaseBoard. The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT-LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws, ensuring a safe and reliable attachment with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobby prototyping.

Features:
CAN Bus Interface
Based on MCP2518FD and ATA6563
Complies with ISO11898-2:2016 and SAEJ2962-2
Configurable termination resistor on the CANH and CANL lines via a slide switch
SPI BUS communication

Technical Details:
Manufacturer: RAK Wireless
Model: RAK13006
Manufacturer SKU: 100099
Voltage: 3.3V
Chip: MCP2518FD, ATA6563
Connection: 4-pin screw terminal
Data rate: 1Mbit/s
Operating temperature: -40°C – 85°C
Dimensions: 25 x 35 x 12.5mm
Weight: 5g

Delivery includes:
1x WisBlock RAK13006 CAN Bus Interface MCP2518FD.
