Quwireless QuSpot for RUTX12 2x Antenna

AX12S - QuSpot for Teltonika RUTX12/14

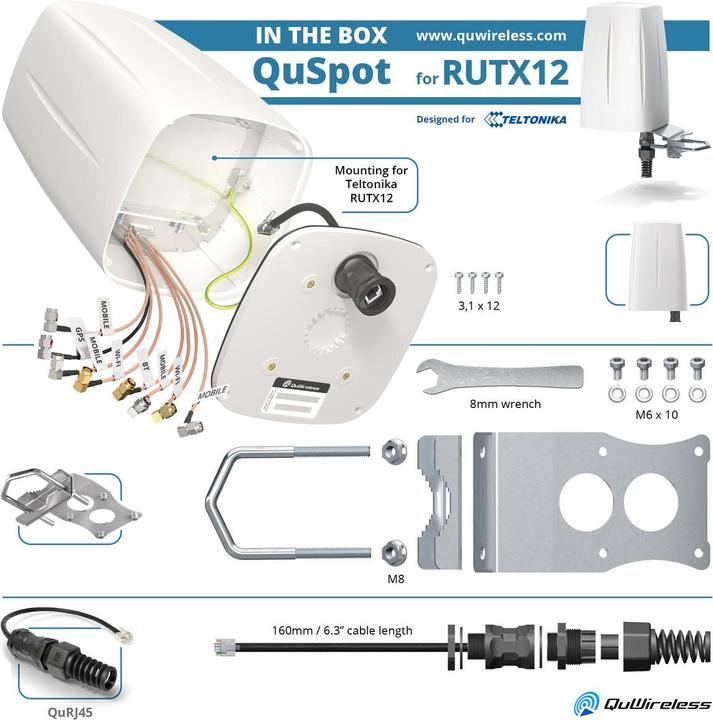

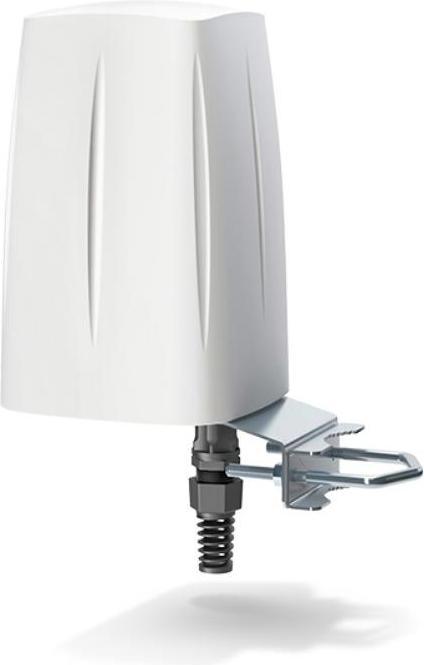

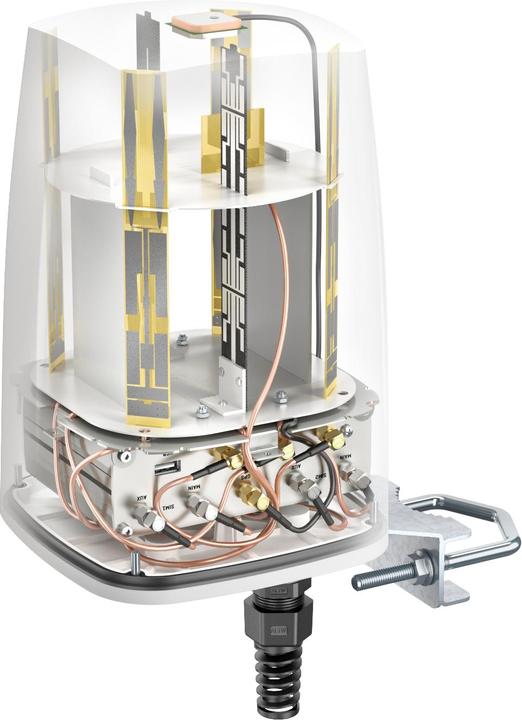

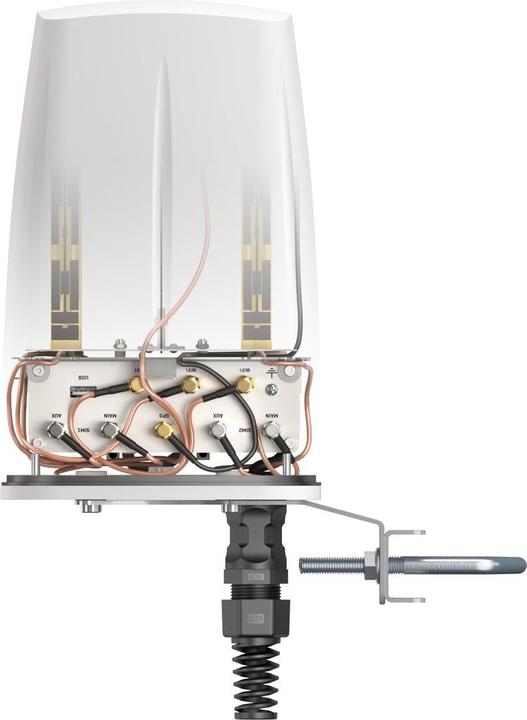

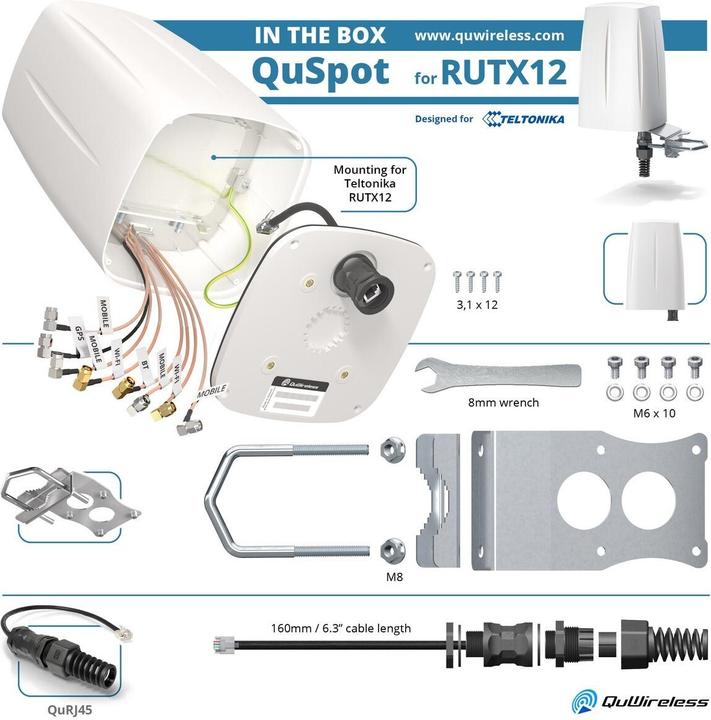

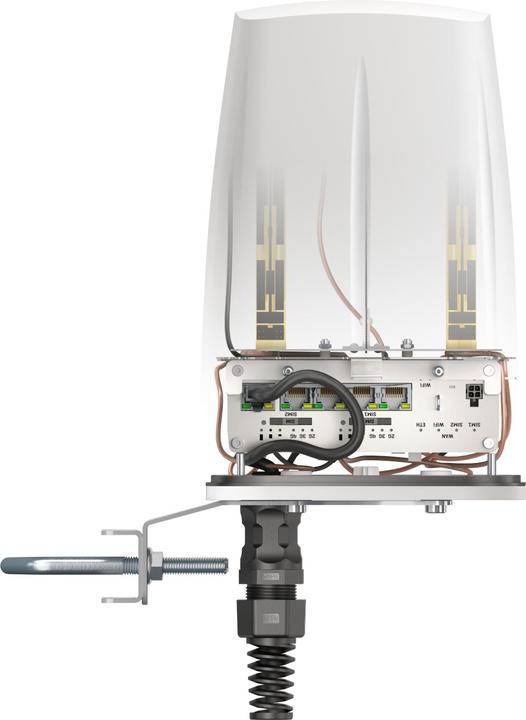

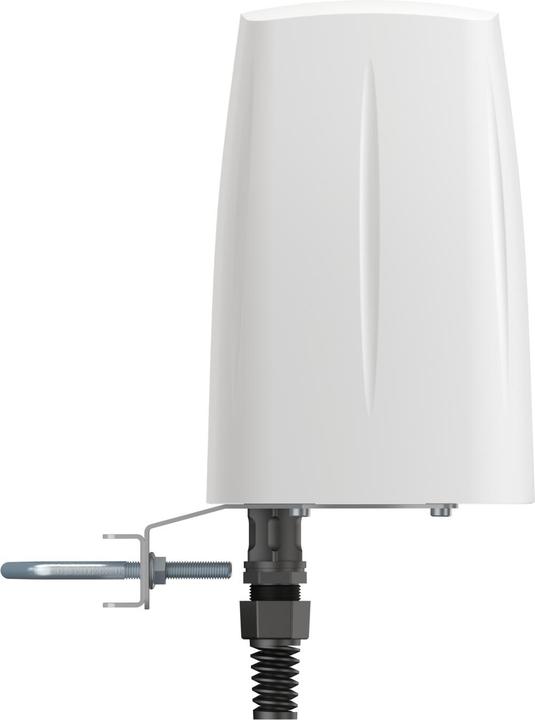

The QuSpot MIMO 4x4 omni LTE antenna for the Teltonika RUTX12/14 router is an ideal outdoor device for mobile and fixed installations such as industrial applications, CCTV, hotspots, yachts, boats, campers, and RVs. The device is equipped with four SMA connectors for two embedded LTE modems. It also features embedded dual-band Wi-Fi omni antennas for 2.4 GHz and 5 GHz, as well as a GPS and a Bluetooth antenna. When using the RUTX12/14 with a QuSpot antenna, you benefit from a complete integrated solution with an embedded router and multi-band antennas in one enclosure.

LTE Antenna Specifications

• Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.5 - 2.7 GHz

• Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95

• Gain: 0.694 - 0.96 GHz: 2 dBi; 1.7 - 2.2 GHz: 2 dBi; 2.5 - 2.7 GHz: 3 dBi

• VSWR:

• Beamwidth: 360°/25° +/-5°

• Polarization: Vertical

• Impedance: 50 ohms

Wi-Fi Antenna Specifications

• Frequency: 2.40 - 2.50 GHz; 4.70 - 6.00 GHz

• Gain: 2.40 - 2.50 GHz: 6 dBi; 4.70 - 6.00 GHz: 7 dBi

• VSWR:

• Beamwidth: 360°/25° +/-5°

• Polarization: Vertical

• Impedance: 50 ohms

Bluetooth Antenna Specifications

• Frequency: 2.20 - 2.70 GHz

• Gain: 2 dBi

• VSWR:

• Beamwidth: 360°/25° +/-5°

• Polarization: Vertical

• Impedance: 50 ohms

Mechanical Specifications

• Materials: ABS, aluminum, PTFE

• Connector type: RJ45

• Ingress protection: IP67

• Dimensions: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)

• Weight: 1.5 kg (3.31 lbs.)

• Operating temperature: From -40°C to 75°C (from -40°F to 167°F).
