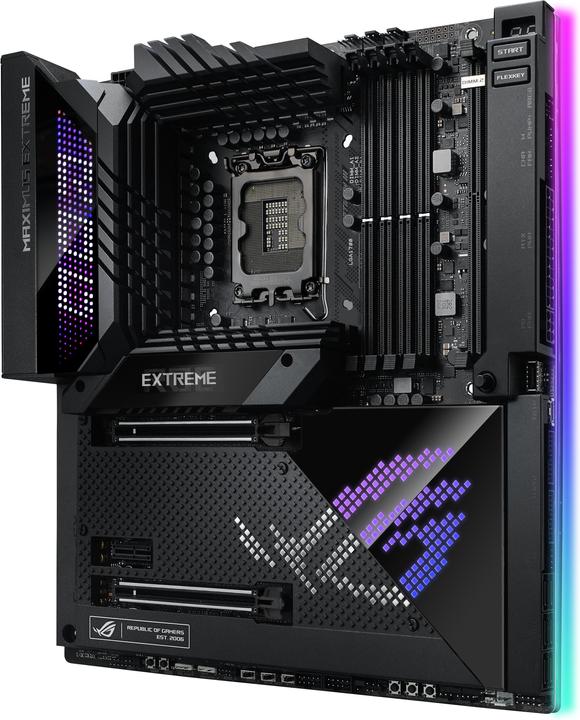

ASUS ROG Maximus Z690 Extreme (LGA 1700, Intel Z690 (DDR5), E-ATX)

ASUS ROG Maximus Z690 Extreme

LGA 1700, Intel Z690 (DDR5), E-ATX

Questions about ASUS ROG Maximus Z690 Extreme

What would you like to know?

Avatar

0 questions and answers

avatar
Anonymous

2 years ago

So I got a ASUS ROG Strix LC II 360 AIO and want to connect it on my ASUS Maximus Z690 Extreme board. I have 2 very important questions: 1. What connector to use for the Water-cooling Pump? -> W_Pump1 (3A/36W) OR CPU_Fan (1A/12W) OR CPU_OPT (1A/12W) 2.The ROG Stric LC II 360 AIO comes with a daisy-chain cable to connect all 3 120mm Fans. What connector to use? -> W_Pump2 (3A/36W) OR CPU_Fan (1A/12W) OR CPU_OPT (1A/12W) Do i have to split 2 Fans / 1 Fan on 2 connectors CPU_Fan (1A/12W) and CPU_OPT (1A/12W), since they are only 1A/12W per connector but 3 Fans?

avatar
Sadik Kuzu

2 years ago

You can connect the Pump to the CPU_Fan as in the manual. For the fans it is better to split them to 2/1 or use one connection for each fan. You can use all fan connectros except the W_Pump1 and W_Pump2.

avatar
Dranon

3 years ago

What could be the reason for this, when fast-forwarding through video clips such as YouTube, all USB devices suddenly log off and then log on again after a few seconds? It's strange that this problem only occurs when the A50 Astro headset is connected to the USB, as soon as I disconnect it from the USB connection, everything works again.

avatar
A-Run

3 years ago

It's difficult to make such a remote diagnosis. Off the top of my head, I can think of one: - Not enough power? What kind of power supply do you have? - Are drivers (especially chipset) and bios up to date? - Any other devices connected to the USB ports?

avatar
Anonymous

3 years ago

En branchant une ROG-STRIX-RTX3080TI-O12G-GAMING (318.5 x 140.1 x 57.78 mm) sur le 1er slot PCIe x16, y-a-t-il encore suffisamment de place pour brancher une Creative Sound Blaster AE-7 sur le slot PCIe x1 ? https://www.digitec.ch/fr/s1/product/creative-sound-blaster-ae-7-pci-e-x1-cartes-son-13089972 https://rog.asus.com/us/graphics-cards/graphics-cards/rog-strix/rog-strix-rtx3080ti-o12g-gaming-model/spec

avatar
Maude Comte

3 years ago

We couldn't test this configuration, but if you put the graphics card in the top slot and the sound card just below it it should work. :)

avatar
Quicktey

3 years ago

I am a little confused about the power connections on these boards. The 24 pin connector is self-explanatory. However, I am wondering what the top 2 and the one below the 24 pin connector are. And can I run everything with a bequiet Dark Power 12 (1000w)?

avatar
inematov

3 years ago

Helpful answer

Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector (PD_12V_PWR) The PD_12V_PWR connector provides additional power for your PCIe X16 slots. To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector (PD_12V_PWR) else only 27W will be supported. 1000W sollten ausreichen.
