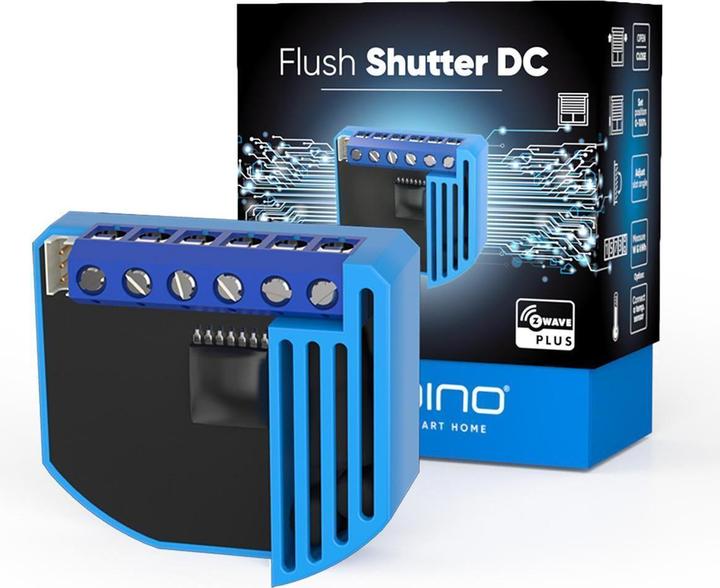

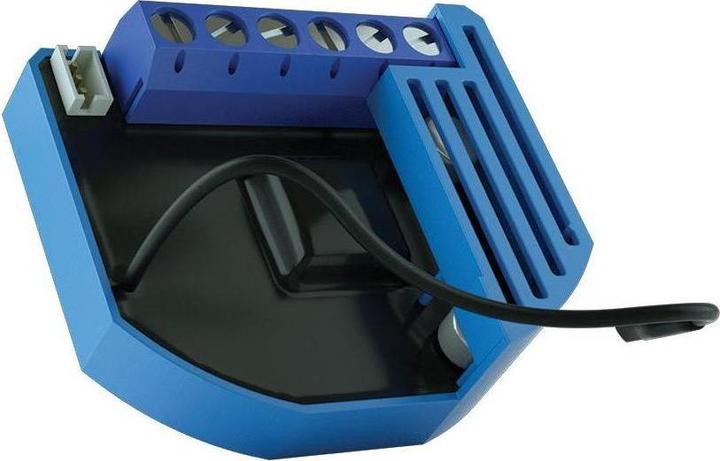

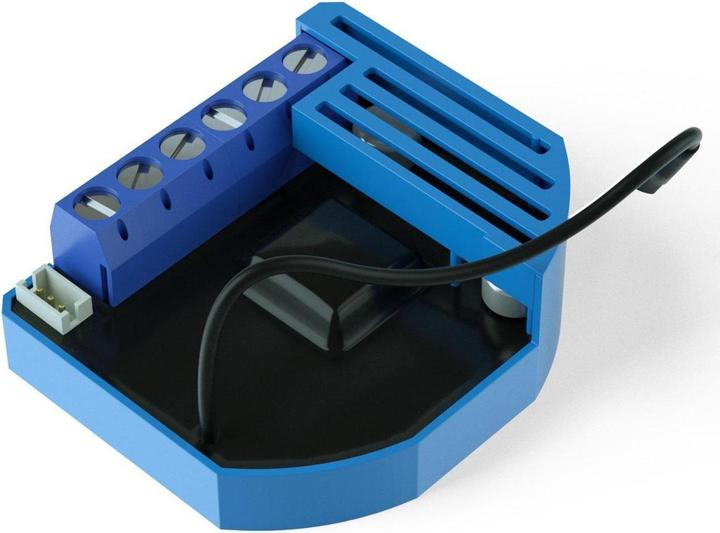

Qubino Flush Shutter DC 12-24 V

The Qubino Flush Shutter DC is a DC controller with inverted polarity for 12-24 V (DC). The module enhances motors for blinds, roller shutters, garage doors, etc., with Z-Wave wireless technology. This allows roller shutters and blinds to be controlled via Z-Wave commands as well as conventional wall switches. The Qubino Flush Shutter DC is designed to fit into a flush-mounted box behind a conventional wall switch.

Additionally, the Qubino Flush Shutter provides insights into the power consumption of your connected devices and ensures that the range and stability of your Z-Wave network are enhanced. An optional temperature sensor is available, which further expands its functionality.

Features:

• The flattest Z-Wave wireless module for flush-mounted installation
• Precise positioning of roller shutter and blind motors, etc.
• Energy measurement and repeater function
• Compatible with any switch series (push-button, toggle, or rocker switches) and any design
• Additional connection for a digital temperature sensor (optional)
• Voltage: 12…24 VDC ±10%
• Standby power consumption: 0.3 W

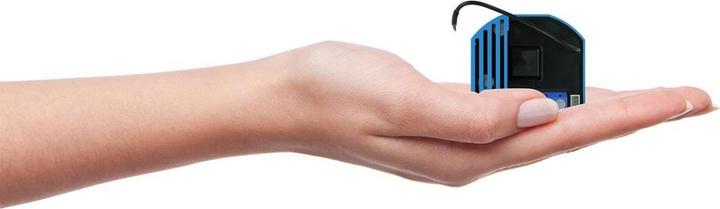

• Dimensions: 42 x 37 x 15 mm
• Wireless technology: Z-Wave Plus.
