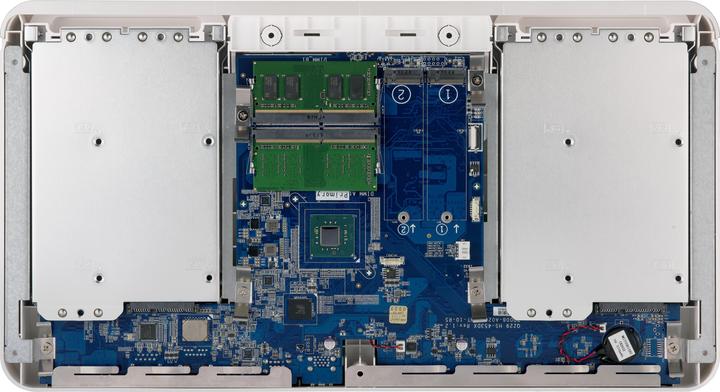

The HS-453DX, awarded the Computex d&i Design Award in 2018, features a stylish and minimalist design while delivering maximum multimedia performance. It is powered by an Intel Celeron J4105 Quad-Core processor with HDMI 2.0 (4K @60Hz) output, allowing you to enjoy high-quality videos directly on a 4K HDTV and seamlessly integrate into an existing home theater system. With a fanless design, the HS-453DX operates quietly, enabling you to fully enjoy a multimedia experience without disruptive noise. The HS-453DX is also designed for high-speed networks, offering both a 10GbE NBASE-T port and a hybrid HDD + SSD structure (two SATA 3.5-inch drive bays and two M.2 2280 SATA SSD slots) to facilitate fast file transfers and a smooth video streaming experience.
NAS HDD assembly | NAS empty enclosure |
Max. number of hard disks | 2 |
RAID configuration | 0, 1, 10, 5, 6, JBOD |
Working memory | 8 GB |
Total storage capacity | 0 TB |
Network connections | RJ45 10 Gigabit Ethernet (2x) |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.0 (2x), USB-C 3.2 Gen 2 (1x) |
Documents | Technical data sheet.pdf |
Item number | 10133138 |
Manufacturer | QNAP |
Category | NAS |
Manufacturer No. | HS-453DX-8G |
Release date | 17.5.2019 |
Colour | Silver |
Exact colour description | Silver |
NAS HDD assembly | NAS empty enclosure |
Model | Desktop |
Max. number of hard disks | 2 |
Hard drive form factor | 2.5", 3.5" |
RAID configuration | 0, 1, 10, 5, 6, JBOD |
Memory type | LPDDR4-RAM |
Working memory | 8 GB |
Maximum possible memory | 8 GB |
Add-on packages | QNAP: Notes / Signage / Photo / Video / Multimedia / Digital TV / TV / Music / Surveillance Station, Virtualization Station, myQNAPcloud, File / Backup / HD / DJ / Download Station, Qairplay, Qsync, Print Server, HappyGet, DLNA Media Server, Antivirus, Webserver, iTunes / Mail / VPN Server |
Data storage configuration | 0 TB |
Total storage capacity | 0 TB |
Hard disk additional functions | Hot plugging |
Processor type | Intel Celeron J4105 |
Clock frequency | 1.50 GHz |
Max. turbo clock rate | 2.50 GHz |
Number of processor cores | 4 -Core |
Network connections | RJ45 10 Gigabit Ethernet (2x) |
Connectivity | Ethernet, LAN |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.0 (2x), USB-C 3.2 Gen 2 (1x) |
Video connections | HDMI (1x) |
Audio Connections | Jack 3.5mm (2x), Jack 3.5mm Line In (1x) |
Internal connections | M.2 (2x), S-ATA III (2x) |
Number of camera licenses included | 3x |
Power consumption (standby) | 13.55 W |
Power consumption | 22.38 W |
Redundant power supply unit | Yes |
Country of origin | Taiwan |
Scope of delivery | 2x Ethernet cable, 2x M.2 SSD screws, 6x screws for 2.5, 8x screws for 3.5, HS-453DX, IR Remote Control RM-IR004, Power cord, Power supply, Quick Installation Guide (QIG), Thermal Pads for M.2 SSD & IC |
Length | 40.40 cm |
Width | 22 cm |
Height | 4.28 cm |
Weight | 2.40 kg |
Length | 50 cm |
Width | 16 cm |
Height | 31 cm |
Weight | 3.28 kg |
