Purecrea Logic Level Converter 4-channel 5V / 3.3V
Delivered between Tue, 8.7. and Wed, 9.7.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–
Product details
With this module you can connect controllers with different logic voltages. For example, the Raspberry Pi runs on 3.3V and the Arduino Uno on 5V. If you want to connect these devices via SPI, you can use this converter module. The board has 4 channels. It can be used on breadboards without any problems and works with all protocols (SPI, serial, I2C,...) and digital signals. Analogue signals are not supported by this board.
Info: The converter is suitable up to a baud rate of 28800bps if you need higher baud rates we recommend the TXS0108E which goes up to 110Mbps.
Technical details:
Size: 15.5 x 13 x 2.6mm
Maximum baud rate: 28800bps
Weight: 2g

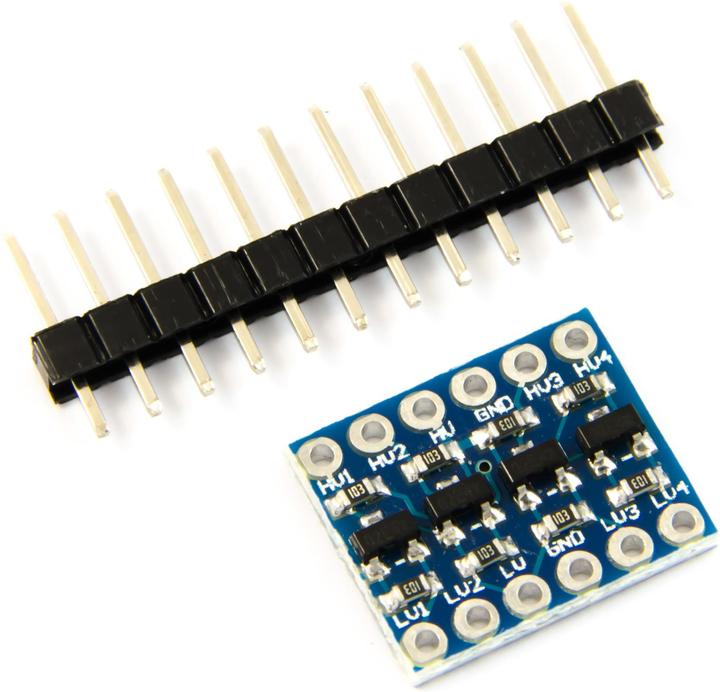

Scope of delivery:1x Logic Level Converter 4-channel
1x Pin Header 12-pin.
Item number | 25442319 |
Manufacturer | Purecrea |
Category | Development board accessories |
Release date | 1.5.2023 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1x Logic Level Converter 4-channel, 1x pin header 12-pin |
Length | 1.55 cm |
Width | 1.30 cm |
Height | 0.26 cm |
Weight | 2 g |
Specifications may include unverified machine translations.
