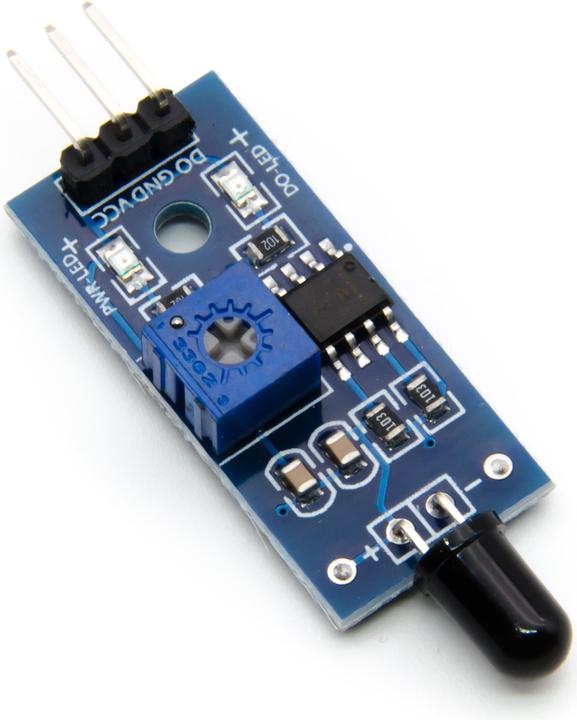

Purecrea IR Infrared Flame Sensor

With this infrared flame sensor with amplifier, you can detect flames with your Arduino or evaluate IR pulses from an electricity meter, for example. The module features a digital output. The switching threshold for the digital output can be adjusted using the potentiometer.

Technical details:
Amplifier: LM393
Outputs: 1x analog + 1x digital
LED1 operation indicator
LED2 digital output
Operating voltage: 3.3 to 5 V
High light sensitivity
Detects: fire, IR, or other light sources
Spectral bandwidth range: 760 to 1100 nm
Detection range: 0 to 1 m (depending on flame size)
Dimensions: 31 x 14 x 7 mm
Weight: 3 g

Delivery includes:
1x IR infrared flame sensor.
