Product details

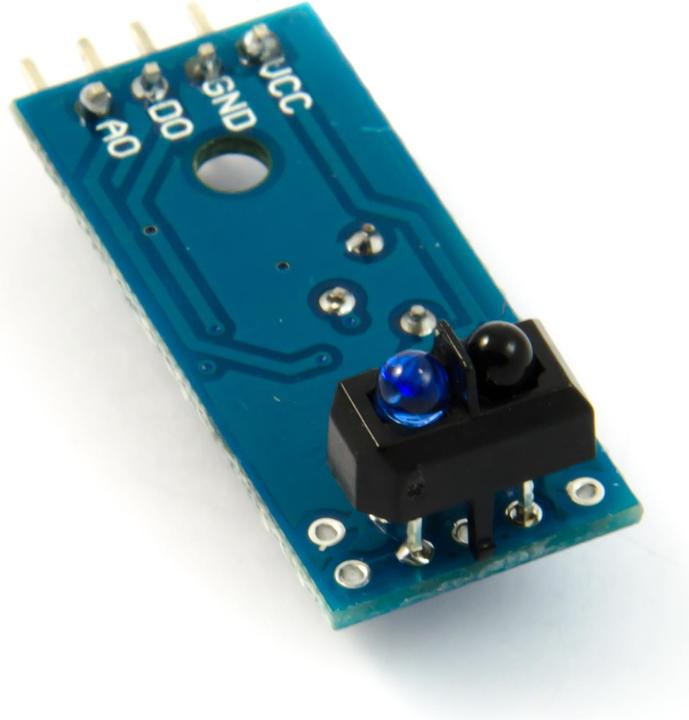

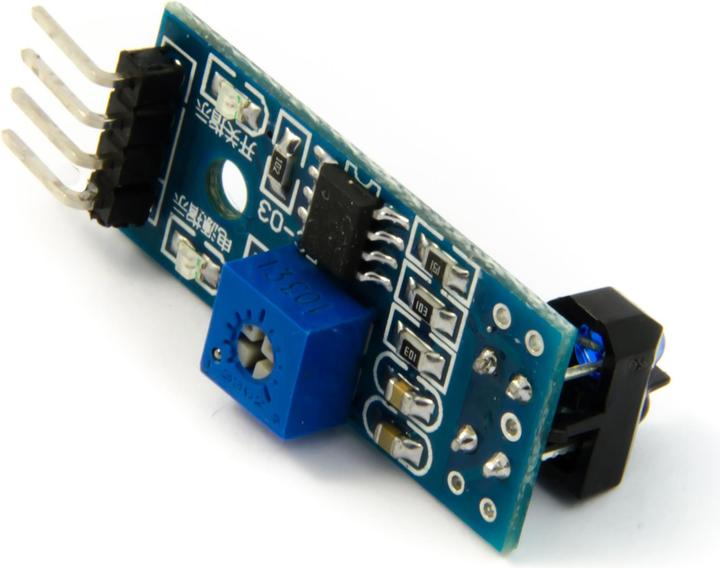

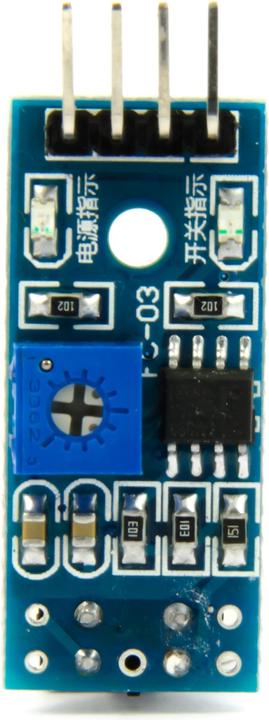

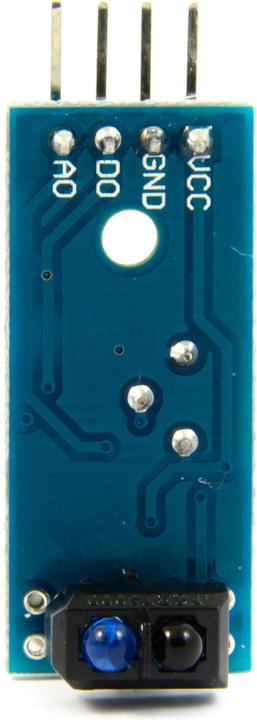

This infrared sensor is suitable for easily detecting whether something is in front of the sensor. This allows you to create a switch that activates when you are near it with your hand or an object. Since the sensor outputs different analog values for black/white, you can also use it as a line tracking sensor in a robot. The sensor can be read in either analog or digital mode (switching value adjustable via potentiometer).
Technical details:
Type: TCRT5000
Operating voltage: 3.3V to 5V
Detection range: approximately 1 to 25mm
Size: 37 x 14 x 16mm
Weight: 3g
Included in delivery:
1x infrared sensor/proximity switch breakout module.
Item number | 25442323 |
Manufacturer | Purecrea |
Category | Development board accessories |
Release date | 1.5.2023 |
Development board Accessory type | Heatsink development board |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1x infrared sensor, Proximity switch breakout module |
Weight | 3 g |
