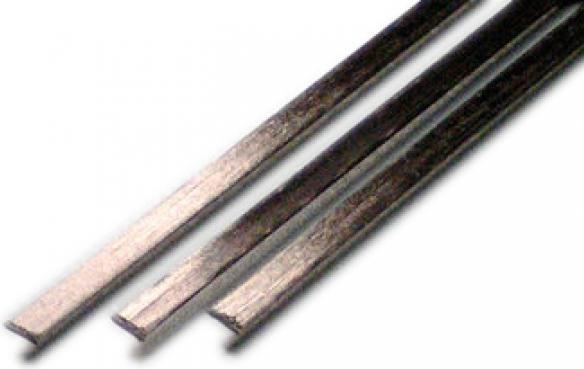

Purecrea Carbon flat profile 10x1mm 1m

This is a carbon fiber (CFRP) flat profile with a fiber content of 63%. The profile is pultruded (drawn). This manufacturing process arranges the fibers unidirectionally in the longitudinal direction. This achieves a high fiber content, but the profiles are susceptible to shear loads. For cutting, we recommend using a diamond cutting disc or saw rather than side cutters. Carbon has excellent mechanical and thermal properties, making it perfect for applications where stability and lightness are required. The surface is slightly porous and bonds well with 3D-printed parts. This allows for the construction of lightweight, complex, and stable frameworks, for example, in model building.

Note: It is only available in 1-meter lengths; two or more units will be shipped as multiple 1-meter pieces.

Technical details:
Material: Carbon fiber 63% in epoxy matrix
Tensile strength: 2500 MPa
Tensile modulus: 140 GPa
Temperature resistance: 120°C
Compressive strength: 1600 MPa
Elongation at break: 2%
Width: 10 mm
Height: 1 mm
Length: 1 m
Weight: 16.4 g

Delivery includes:
1x Carbon flat profile 10x1 mm 1 m.
