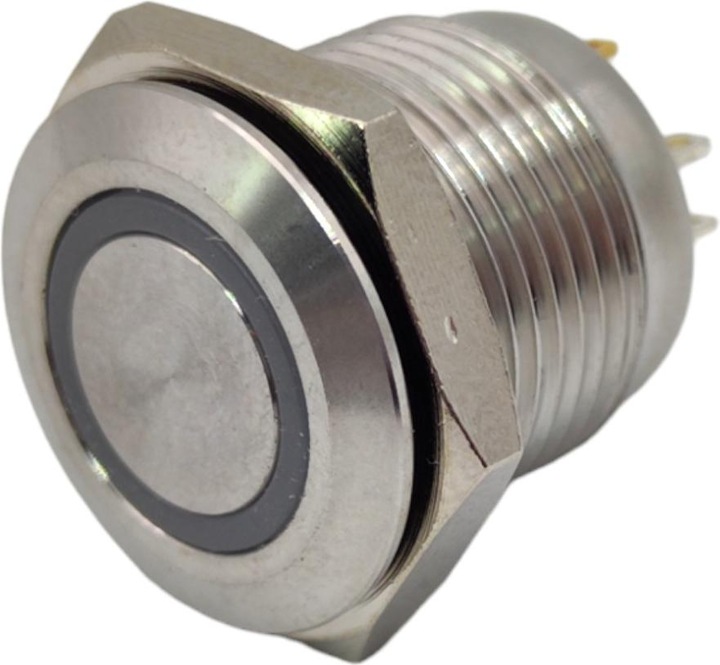

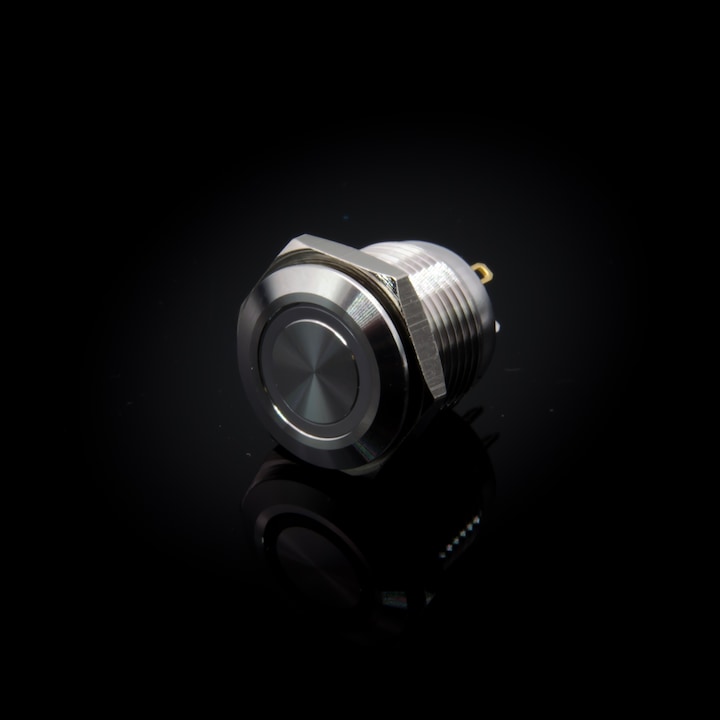

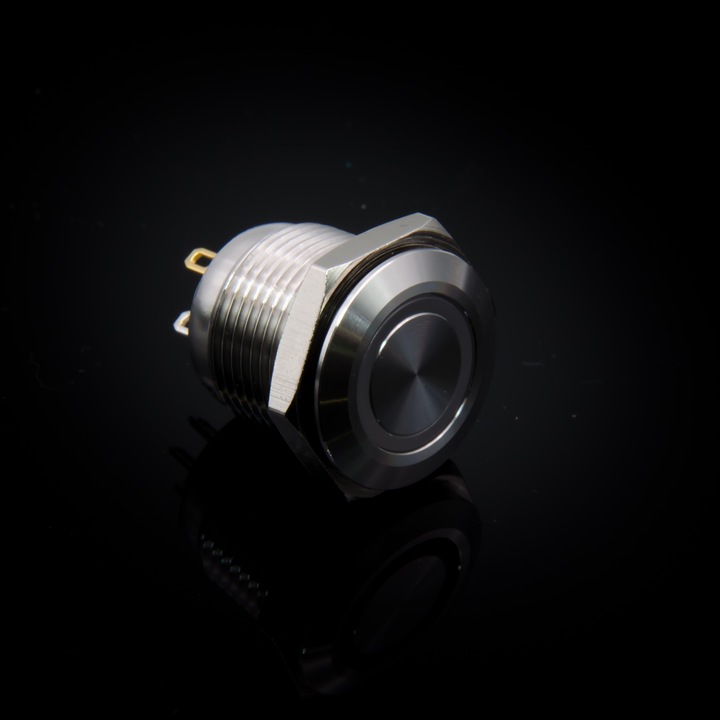

Purecrea 16mm push-button with RGB illumination 5V - stainless steel

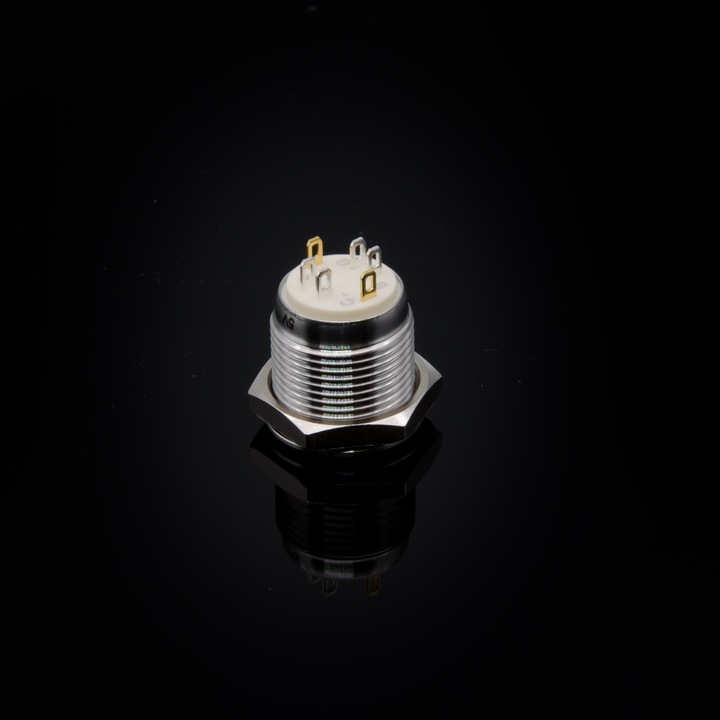

This 16 mm momentary button features a illuminated RGB LED ring that can be controlled in various colors via an Arduino or another microcontroller. On the back, there are two gold contacts for the button and four silver contacts, used once for the cathode and three times for the anode of the red, green, and blue LEDs. The illuminated RGB button already has the current limiting resistors integrated internally. This allows you to connect the LED lighting directly to your microcontroller without an additional resistor. The resistors for the lighting are designed for 5 V but can also operate at 3.3 V. If you want to use a higher voltage, such as 12 V DC or 24 V DC, you simply need to add a 1 kOhm resistor in series with the LED cathode to keep the LED current at approximately 20 mA.

You can best control the LED using three PWM outputs on the microcontroller, allowing you to operate your button in any color.

Technical details:
Type: PM161-10E
Integrated resistors for 5 V (also works with 3.3 V)
LED colors: Red, Green, Blue
Material: Stainless steel
Material of switch contacts: Silver alloy
Drill hole diameter for installation: 16 mm
Diameter of push button: 11.8 mm
Panel thickness: 1-7 mm
Switch type: Momentary (the push button contact is only closed while pressed)
Maximum current capacity of contacts: 2 A 36 V DC
Maximum voltage: 50 V AC/DC
Switch contact: NO (normally open)
Contacts on the back: Solder connection
Number of pins: 6
Operating temperature: -20 to 55 °C
Contact resistance: <50 MOhm
Insulation resistance: >1000 MOhm
Mechanical lifespan: >500,000
Electrical lifespan: >200,000 at 2 A 36 V DC
Actuation force: <4 N
Protection class: IP65 / IK08
Dimensions: 21.8 x 21.5 mm
Weight: 60 g

Delivery includes:
1x 16 mm push button with RGB lighting 5 V - Stainless steel
1x Nut
1x Seal.
