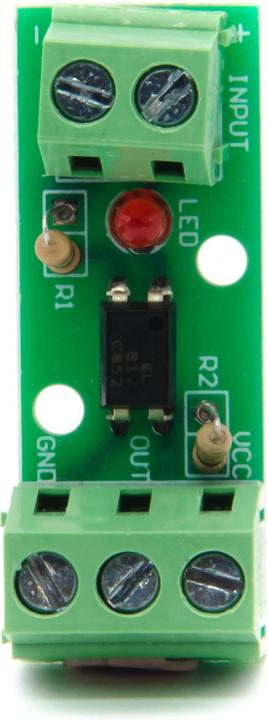

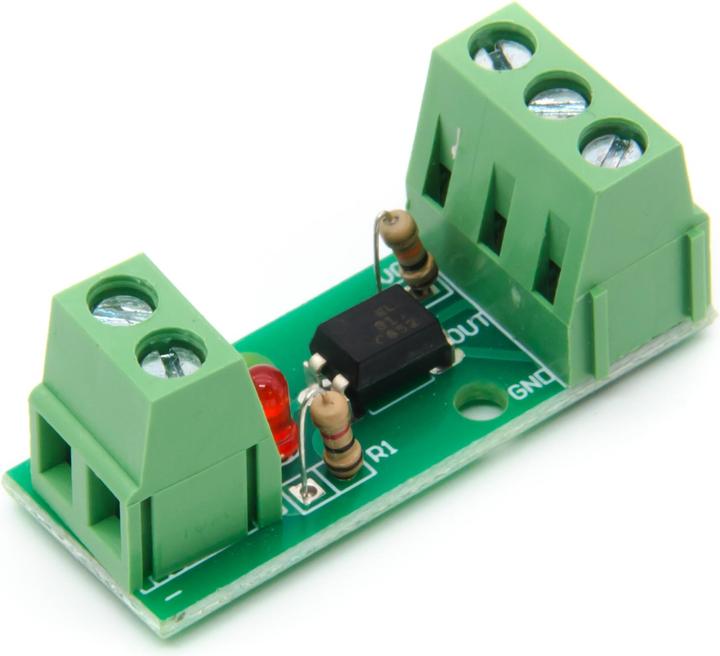

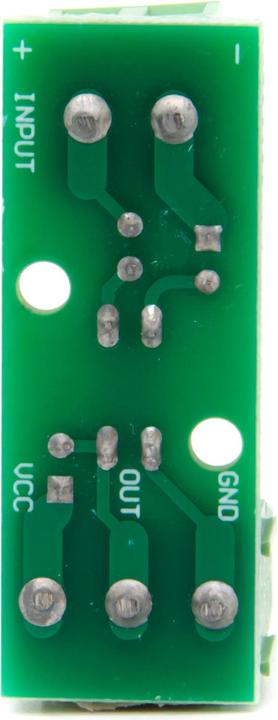

Purecrea 1-channel EL817 optocoupler 12V
Heating actuatorDelivered Wed, 8.4.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–
Product details

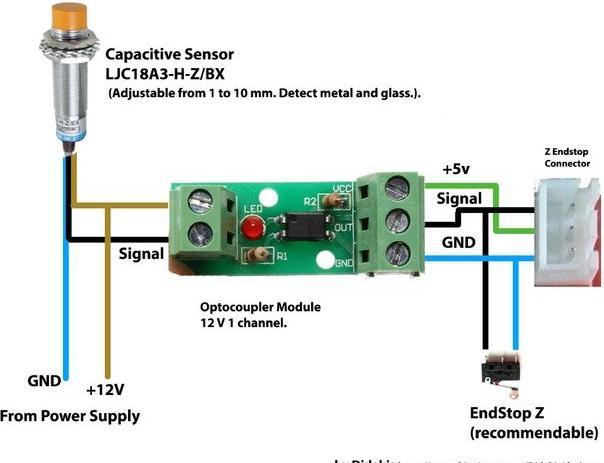

With this optocoupler, you can connect inductive and capacitive NPN or PNP sensors to an Arduino. The optocoupler module is designed for 12V. If you want to operate it at higher voltages, you can replace the resistor R1 with a suitable one. This 1-channel optocoupler is perfect for retrofitting a capacitive ABL EZABL sensor / auto-level sensor to a 3D printer. We successfully use the optocoupler on our Creality CR-10 and Ender-3 3D printers.
Technical details:
Isolation voltage: more than 3000V
Input current: 50mA (max)
Maximum output current: 50mA
Maximum signal frequency: 80KHz
Diameter of mounting holes: 3mm
Dimensions: 40.3 x 15 x 17mm
Weight: 8.5g
Delivery includes:
1x 1-channel EL817 optocoupler 12V.
Actuator type | Heating actuator |
Operating voltage | 12 V |
Items per sales unit | 1x |
Item number | 36359735 |
Manufacturer | Purecrea |
Category | Actuator |
Release date | 15.6.2023 |
Sales rank in Category Actuator | 132 of 1417 |
Actuator type | Heating actuator |
Operating voltage | 12 V |
Number of switching outputs | 1x |
Country of origin | China |
CO₂ emissions | 0.53 kg |
Climate contribution | CHF 0.11 |
Items per sales unit | 1x |
Length | 40.30 mm |
Width | 15 mm |
Height | 17 mm |
