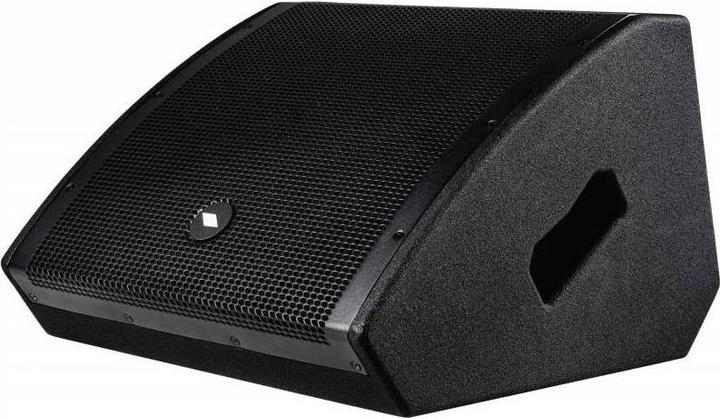

Proel Active stage monitor

Active 2-way coaxial stage monitor

The coaxial transducer design provides optimum high frequency and low frequency alignment and controlled directivity for perfect monitoring from any position, while minimizing the size of the monitor. The ultra-compact enclosures with integrated handle and pole base are designed to have a very low profile, requiring minimal floor space on stage. The enclosures are finished with an extra-strong polyurethane paint, making them resistant to any kind of abuse.

The lightweight 500 W Class-D amplifier module with SMPS delivers high power, resulting in unexpected sound pressure levels for such small speakers. Sophisticated analogue processing provides detailed response, especially in the vocal range, and remarkable feedback resistance. Two EQ presets are available to allow the speaker to be used not only for stage monitoring but also as a main sound system if required.

The WX monitors are available in two models that offer the right solution for different monitoring situations. The ultra-compact WX8A can provide high-quality monitoring in the smallest of spaces, excelling with speech, vocals, and acoustic instruments. The WX10A, with a higher SPL and full frequency response, is ideal for vocals, guitar, brass, and electronic instruments, or as a monitor for DJs.

Technical description:

• Active 2-way coaxial stage monitor
• 1 compression driver with 1 voice coil
• 10 woofer with 2 voice coils
• 500 W total power
• Class-D power amplifier with SMPS
• Dual limiter circuit
• 2 optimized EQ presets for monitor or front-of-house use
• SPL max 123 dB
• Frequency response 70 Hz - 20 kHz
• Ultra-compact, lightweight cabinet with extremely durable black polyurethane finish
• Reinforced metal grille
• Recessed handle for easy transport

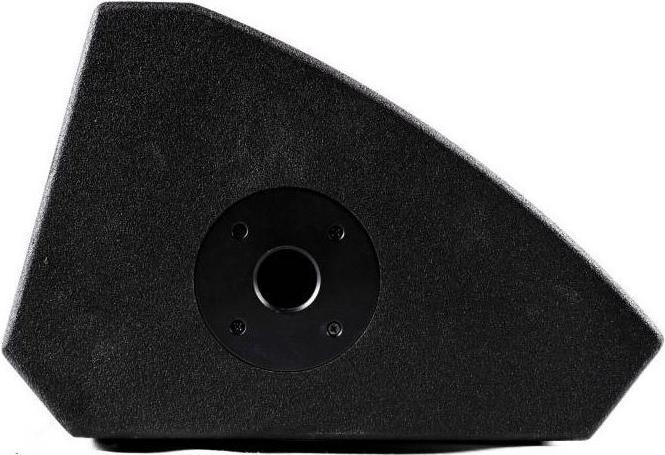

• Tripod mount (side).
