Primewire Antenna cable angled with braiding, coaxial cable 75 Ohm HDTV, radio, DVB-T2 TV antenna cable

The Primewire coaxial cable transmits analog and digital signals from the cable network or a DVB-T system to televisions, radios, and receivers in excellent quality. The clean signal transmission is made possible by a high-density shielding that virtually eliminates external interference and ensures high-quality picture and sound. The shielding measure of 135 dB provides maximum protection against disturbances from mobile phones and radio applications.

Precision connectors with gold-plated contacts enable optimal connections and minimal contact resistance. A fabric sheath protects the cable from damage and improves handling (no tangling or knotting).

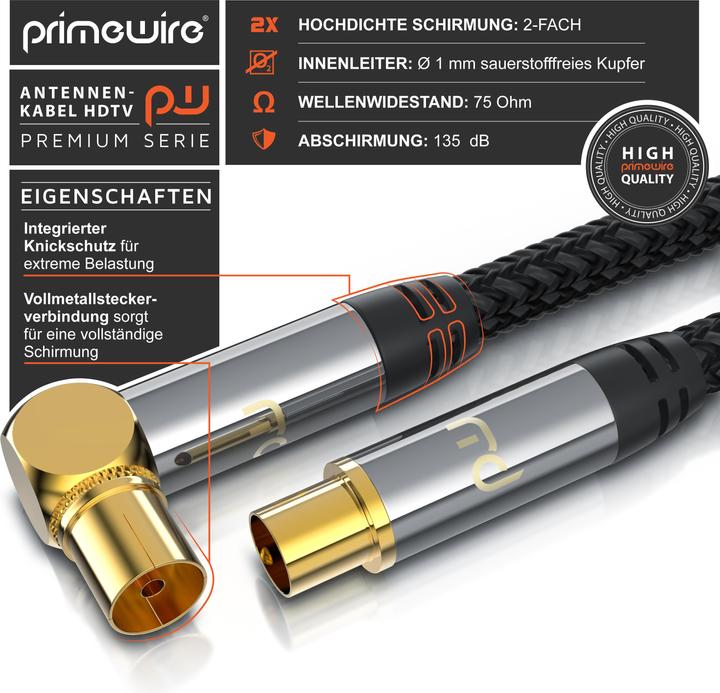

Product Features

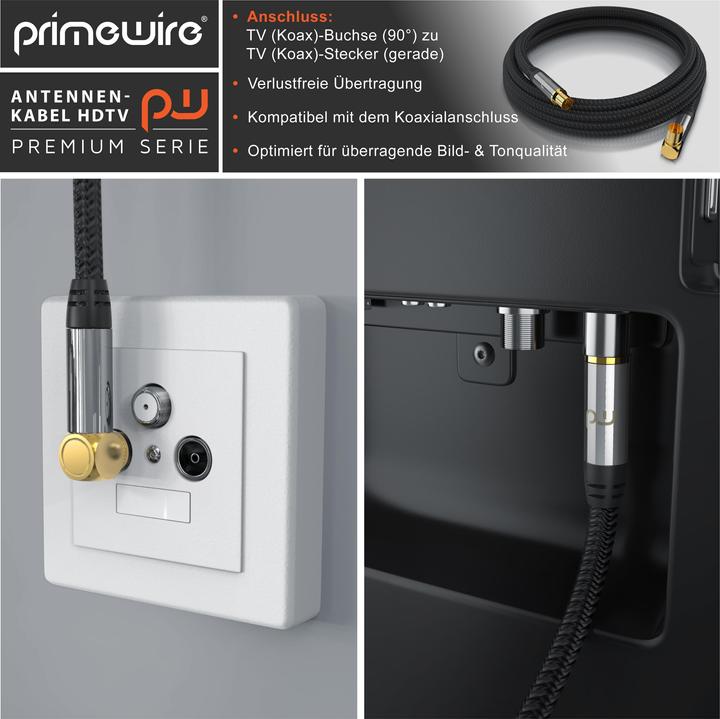

• Connection: TV (coax) coupling (90° angle) to TV (coax) plug (straight)
• Design: coaxial
• Shielding measure: ~ 135 dB (protection against disturbances from mobile phones and radio applications)
• High-density shielding
• High-quality full metal connector
• OFC - oxygen-free copper cable
• Gold-plated connectors (precise fit + corrosion-resistant)
• Fabric sheath
• Perfect for installation (indoor use)
• Flexible bend protection

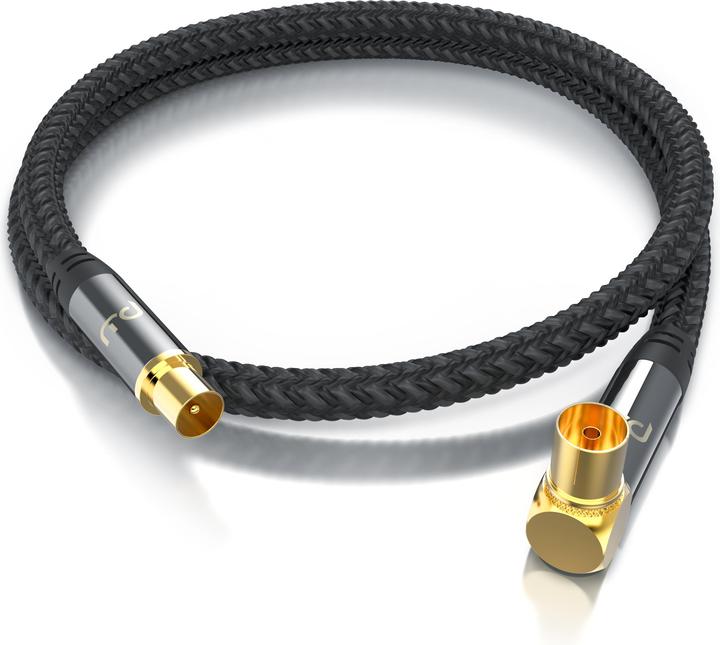

Delivery includes: Primewire Premium TV antenna cable pre-assembled with 90° angle socket to straight plug, fabric sheath

Technical Data

• Wave resistance: 75 Ohm (Ω)
• Shielding: 135 dB

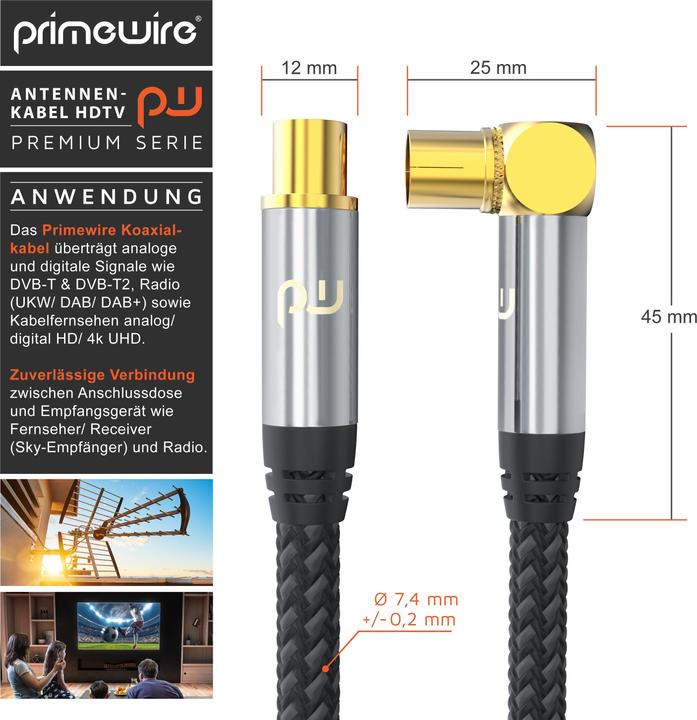

• Outer diameter with fabric sheath: 7.4 +/-0.2 mm
• Cable sheath thickness: 0.9 mm
• Dielectric: 4.6 mm Ø
• Inner conductor: 1 mm Ø OFC (oxygen-reduced copper).
