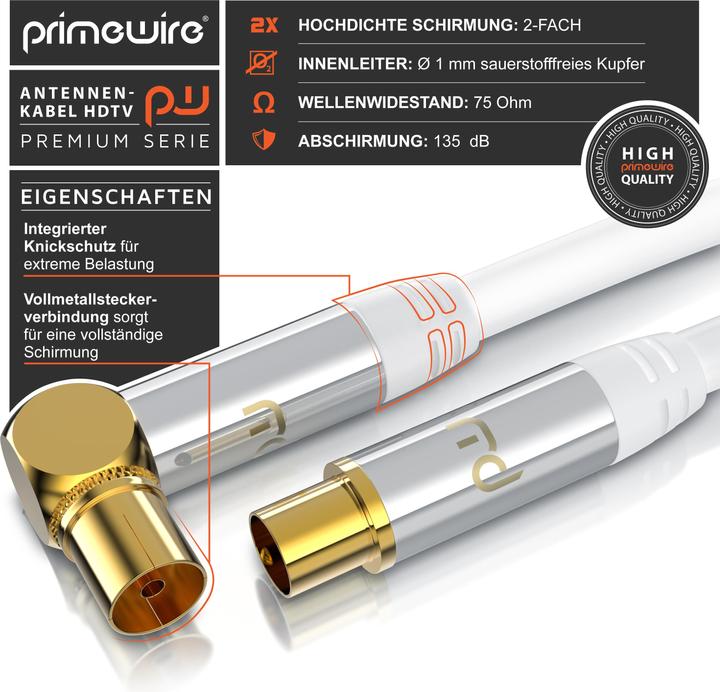

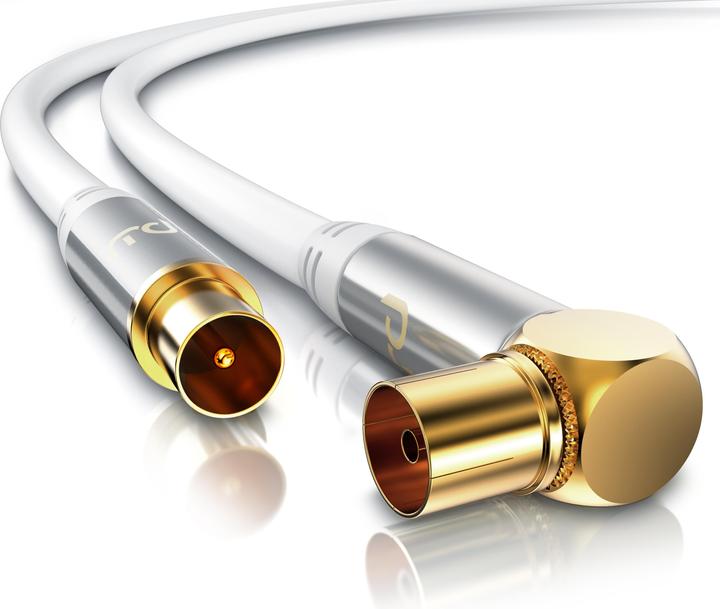

Primewire Antenna cable angled, coaxial cable 75 Ohm HDTV, radio, DVB-T DVB-T2 DVB-S2 TV antenna cable

The Primewire coaxial cable transmits analogue and digital signals from the cable network or a DVB-T system to televisions, radios, and receivers in excellent quality. The clean signal transmission is made possible by high-density shielding, which virtually eliminates external interference and ensures high-quality picture and sound. The shielding rating of 135 dB ensures maximum protection from interference from mobile phones and radio applications.

Precisely fitting connections with gold-plated contacts enable an optimum connection and the lowest transition resistances.

Product features:

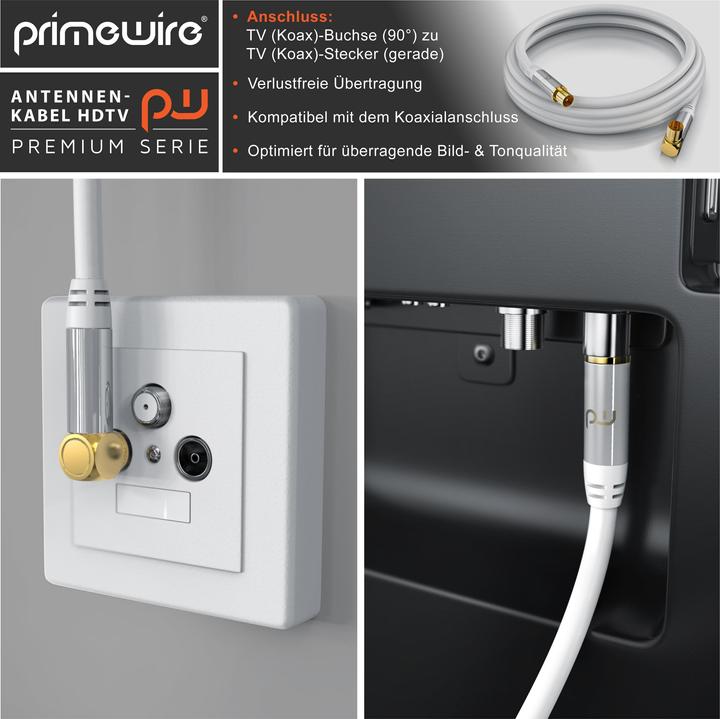

• Connection: TV (coax) socket (90°) to TV (coax) plug (straight)
• Construction: coaxial
• Shielding rating: ~ 135 dB (protection against interference from mobile phones and radio applications)
• High-density shielding
• High-quality full metal plug connection
• OFC - oxygen-free copper cables
• Gold-plated precision plugs (precise fit and corrosion-resistant)
• Perfectly suitable for laying indoors
• Flexible bend protection

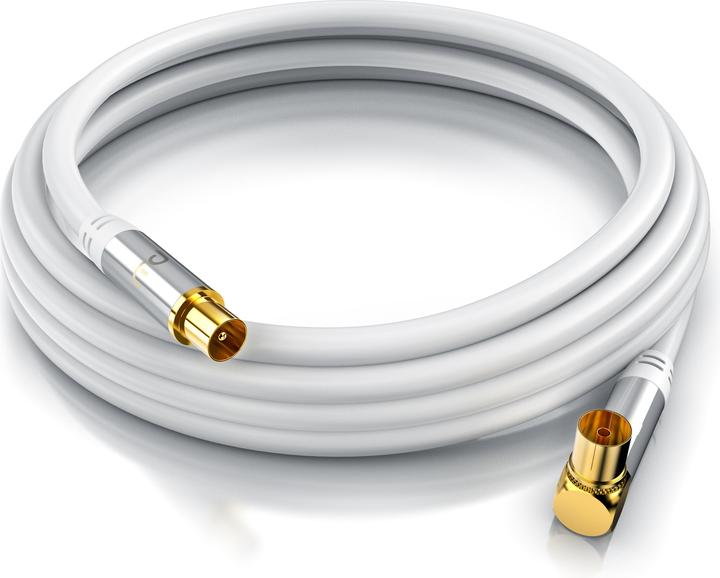

Scope of delivery: Primewire Premium TV aerial cable, pre-assembled with 90° angled socket and straight plug.

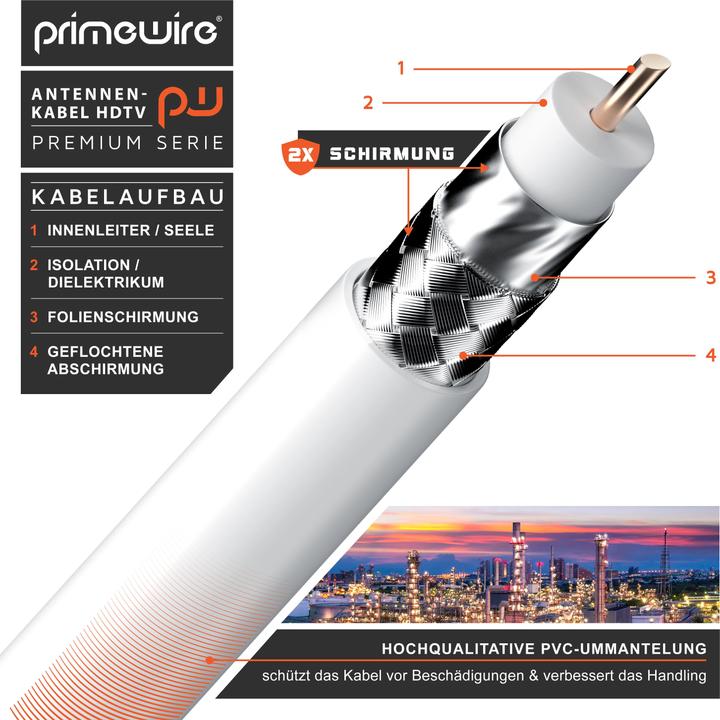

Technical data:

• Characteristic impedance: 75 Ohm (Ω)
• Shielding: 135 dB

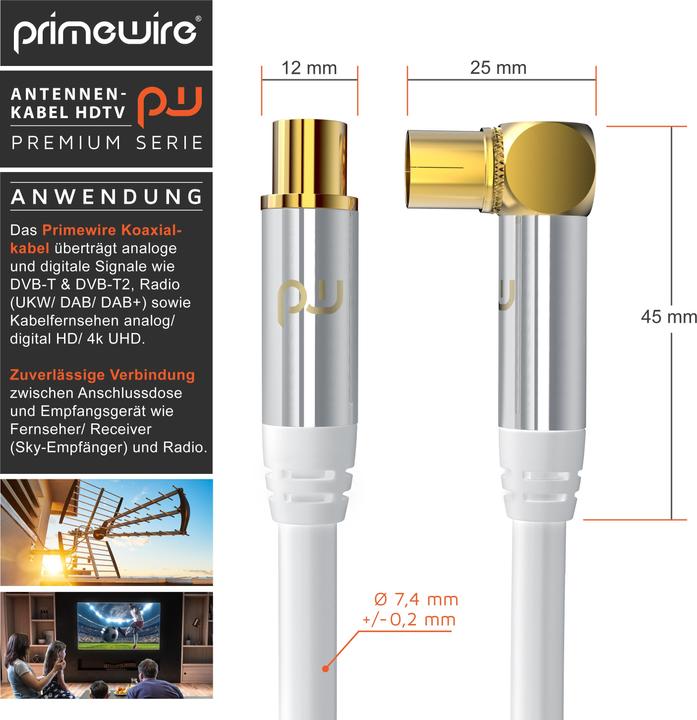

• Outer diameter with PVC jacket: 7.4 +/- 0.2 mm
• Cable sheath thickness: 0.9 mm
• Dielectric: 4.6 mm Ø
• Inner conductor: 1 mm Ø OFC (low-oxygen copper).
