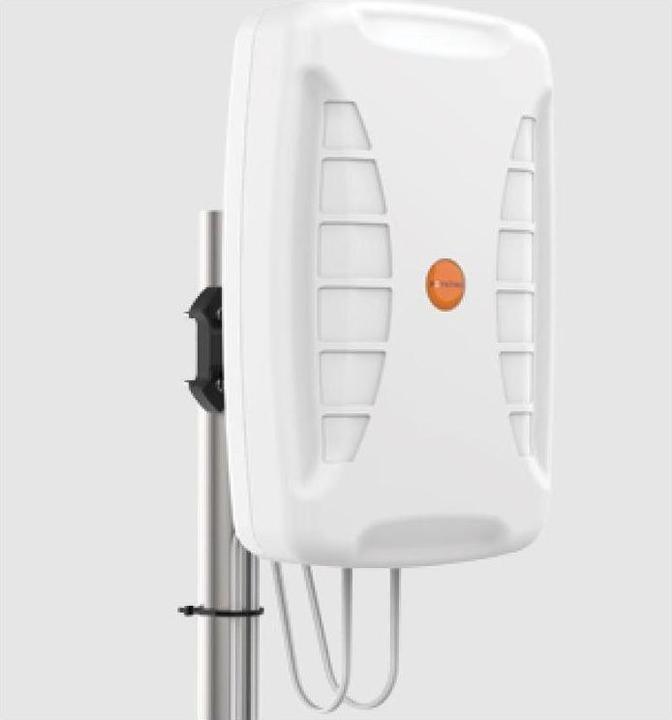

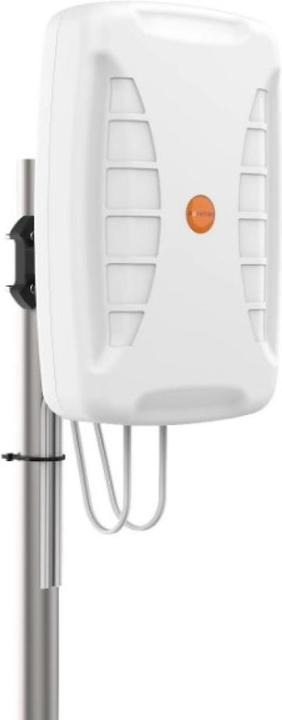

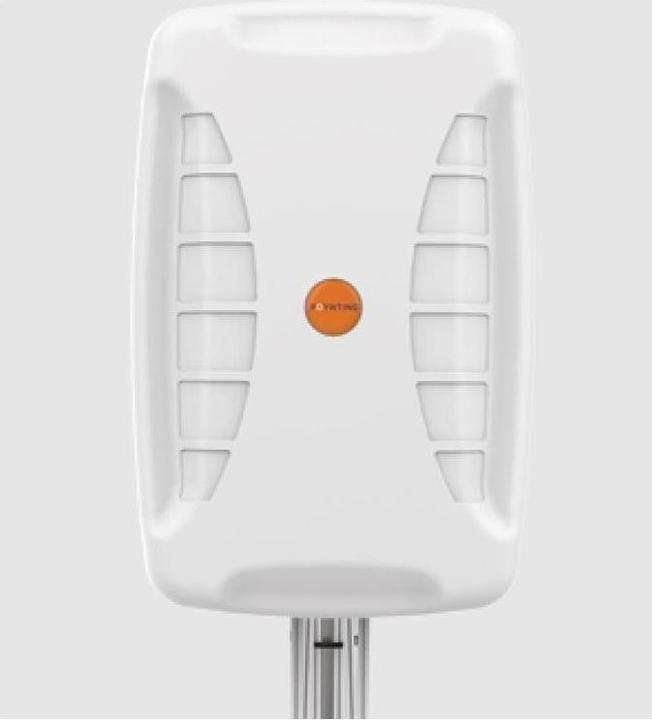

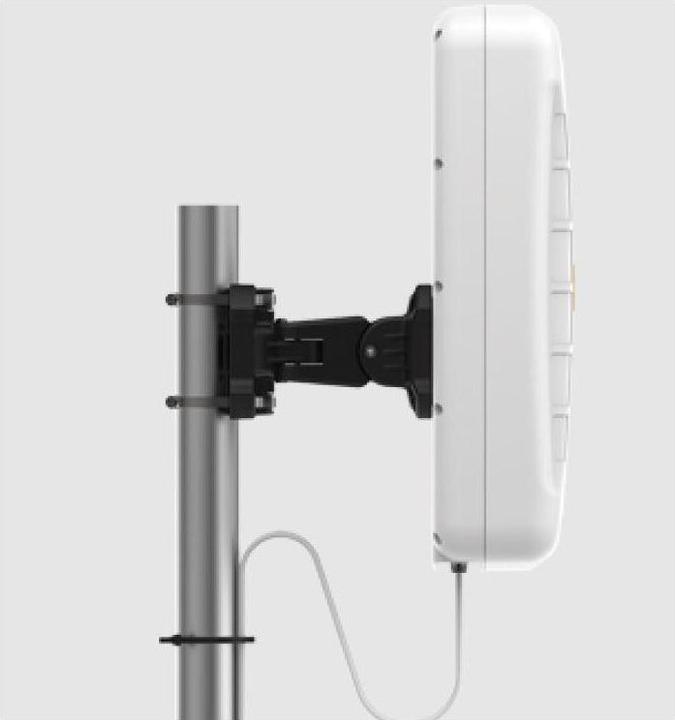

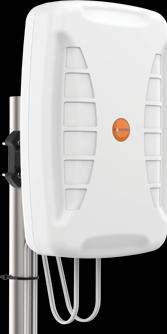

Poynting Antenna- 5G/LTE- Mast/Wall- A-XPOL-0024-V1-02- white- N-Type F-

The XPOL-24 expands Poynting's highly popular range of cross-polarized antennas (XPOL). Thanks to advanced metamaterial technology, it offers users exceptional performance. This technology utilizes an artificial magnetic conductor (AMC) and a new registered/patented configuration that has been proven to enhance bandwidth and gain. With the unidirectional antenna, users benefit from broad frequency coverage. Particularly for current and future 5G/LTE solutions, the XPOL-24 is an attractive choice due to its outstanding broadband performance, enabling users to achieve the best possible reception and throughput across multiple frequency bands simultaneously.

Included in the package:

• A-XPOL-0024 antenna
• Mounting bracket BRKT-062
• M6 stainless steel nuts
• M6 x 12 mm stainless steel screws
• M6 stainless steel washers
• Wall installation screws
• M6 x 60 mm stainless steel U-bolt
• Allen wrench

Highlights:

• Exceptional high-performance antenna for key 5G/LTE bands
• New advanced metamaterial technology for high performance
• Broadband 4x4 MIMO 5G/LTE antenna from 617 to 4200 MHz
• Four cross-polarized antennas in a single housing
• Weatherproof, dustproof, and vandal-resistant enclosure with IP65 protection

Applications:

• Outdoor antenna for Fixed Wireless Access (FWA)
• LTE/5G internet connectivity for consumers
• Industrial and commercial LTE/5G installations
• LTE/5G data distribution in agriculture
• Telemetry access for power, energy, and water
• Oil and gas communication systems
• Repeaters and amplifiers to enhance coverage.
